What Applications Can Steel Structure Shade Support Beyond Parking Areas?

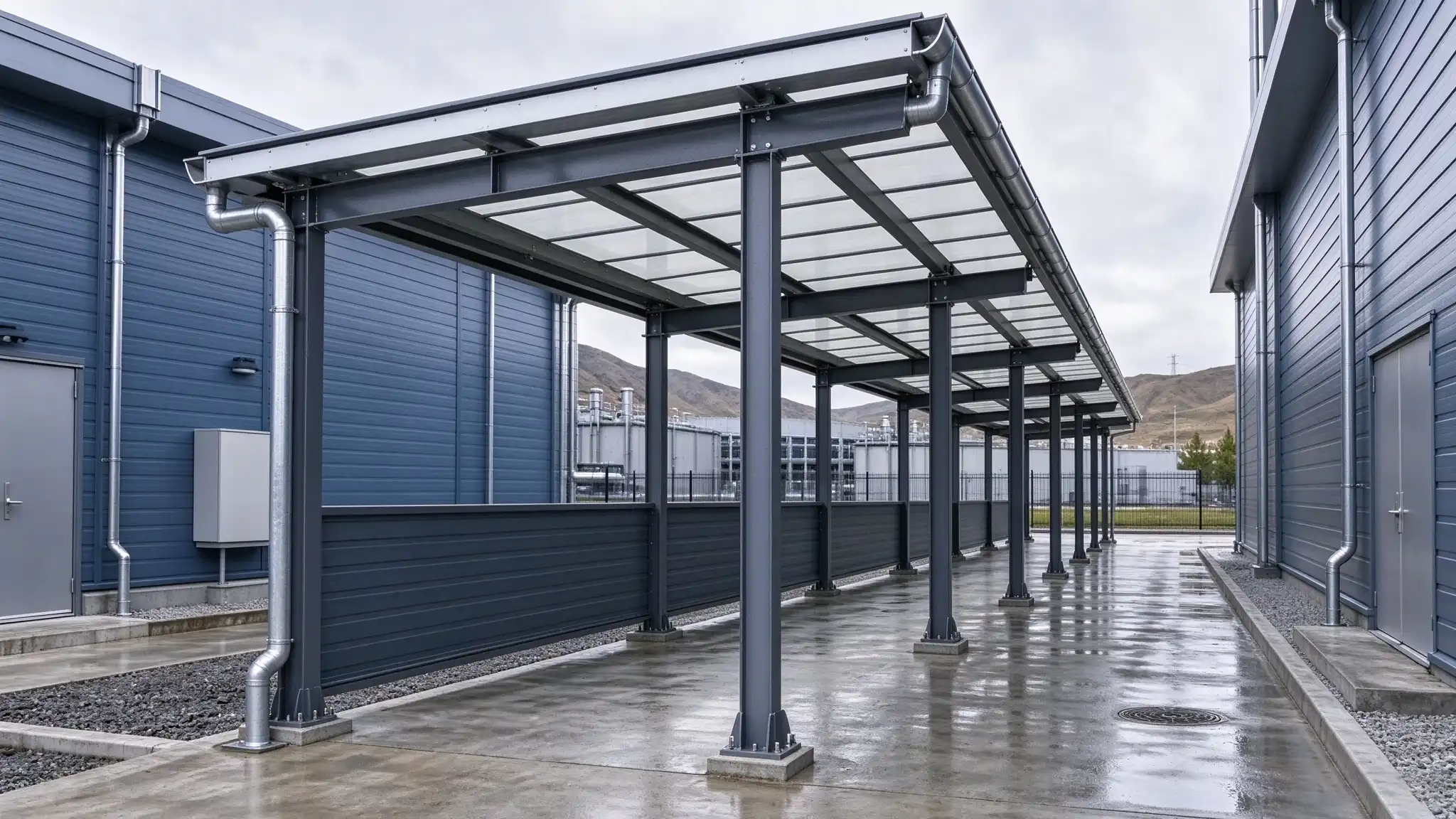

A parking canopy is what most people think of when they hear the word "steel structure shade." It's easy to picture that, but it's not even close to all that these engineered systems can do. A steel shade structure is made up of a frame made of Q235 or Q355 carbon steel and coated steel sheeting or tensioned membranes on top. It provides large-span, column-free protection for people, equipment, and inventory in many different businesses. In reality, it can be used for a lot more than just parking. It can be used as loading docks for pharmaceuticals or as open-air sports complexes.

Expanding the Scope: Common and Emerging Applications of Steel Structure Shades

The industrial data shows that steel shade structures are used for a lot more than they were originally made for. According to Grand View Research (2023), the world market for prefabricated steel buildings was worth about usD 22.8 billion in 2022 and will continue to grow at a rate of 6.1% per year until 2030. Part of that rise is due to the need for flexible overhead protection in fields that don't have much to do with cars.

Industrial and Warehousing Applications

Steel roof systems with a wide span are useful in factories, warehouses, and loading docks. The kind of steel structure our team makes has an eave height of 9 m and a span of 63.3 m × 36.5 m. This type of structure lets building managers have an open floor plan for forklifts, conveyor lines, and bulk storage. Just protecting loading bays from the weather can cut product damage claims by a measurable amount.

Agricultural and Livestock Applications

A steel structure shade provides a practical covering solution for farmers and agribusiness owners who need to protect crop storage areas, equipment yards, and livestock shelters from sun and rain. Designed for demanding agricultural environments, a steel structure shade can feature a hot-dip galvanized finish to improve corrosion resistance in damp conditions and areas exposed to ammonia. A coating thickness of more than 85 microns may be specified where appropriate, with the actual requirement depending on the applicable standard, steel component thickness, and exposure conditions. Unlike timber framing, a steel structure shade does not rot, warp, or attract termites, helping reduce certain maintenance concerns associated with wooden structures. With suitable structural design, drainage, and corrosion protection, a steel structure shade can provide dependable performance across a range of agricultural applications. Property owners should also consider ventilation, wind loads, roof coverage, and equipment clearance when planning installation. By selecting a properly engineered steel structure shade and maintaining its protective coating, agricultural businesses can improve site functionality and manage long-term maintenance costs more predictably.

Recreational and Public Space Applications

More and more sports fields, community playgrounds, outdoor event venues, and transit hubs are asking for steel canopy systems to provide permanent shade. The structural load-bearing design can handle dead loads from photovoltaic (PV) panels, lighting rigs, or signs, which is something that fabric awnings can't do safely over a 25- to 50-year service life.

Why Choose Steel Structure Shades Over Alternative Materials?

When you look at the other options, it's clear that steel is the best. About every 10 to 15 years, the membranes on cloth covers need to be changed. Insurance rates go up for wooden frames because they are more likely to be damaged by fire and pests. The yield strength of the steel we work with is between 235 and 345 MPa. It is called Q235/Q355. Even though aluminium extrusions are lighter, they only have a 160 MPa bending strength. There is a big difference between the two. The changes make the job safer but cost more to own overall.

Steel vs. Fabric and Wood

Steel will last longer than both fabric and wood if you leave it outside. If you clean hot-dip galvanised steel frames with pressure, they can last more than 15 years. In industrial zones, it's hard to follow the rules because wood needs to be sealed every year and can catch fire. Fibre membranes break down over time when exposed to UV light. They need to be re-tensioned often, which adds to the cost of the job.

Steel vs. Aluminum in High-Load Environments

For home pergolas, aluminium works well because it is light. But it shouldn't be used on industrial sites where wind lifting, snow buildup, or machine shaking can cause big dynamic loads. Most aluminium alloys are not as strong as Q355 steel when it comes to making bends. This means that fewer pieces can be used to make longer lengths. When the plant floor doesn't have any middle posts, that's very important.

Compliance and Certification Advantages

A steel structure shade should be evaluated against relevant quality requirements, structural standards, and local building regulations before procurement. Depending on the project and destination market, manufacturers may provide ISO 9001 quality management documentation, applicable CE conformity documentation, and test reports referencing relevant ASTM standards. For procurement managers, verifying these credentials helps determine whether a steel structure shade meets the requirements of local building authorities, insurers, and applicable environmental regulations. Structural safety features, including resistance to seismic forces and fire performance, should be confirmed through engineering calculations, product specifications, and supporting test documentation rather than assumed from a general certification label. If a steel structure shade is intended for an earthquake-prone area, buyers should confirm that its design meets the applicable local seismic requirements. Similarly, fire-safety provisions must be assessed according to the materials used and the building code governing the project. By reviewing these technical details before placing an order, procurement teams can select a steel structure shade that aligns with project-specific safety requirements and compliance expectations. Working with a qualified manufacturer also helps ensure that the steel structure shade is supplied with the necessary documentation for installation and inspection.

Designing Steel Structure Shades for Diverse Applications

How well a steel canopy job is planned can make or break its value. Choose the span width, purlin spacing, roof panel type, and surface finish when the building is being planned. For the rest of its life, these decisions will affect how well it works.

Custom vs. Prefabricated Design Approaches

It's better to get custom-built models for places that aren't round, need to hold a certain amount of weight, or want to add solar panels. Portal-frame systems that come in a kit are 30% to 50% faster to build than options made of cast concrete. Clients who are short on time can start making things earlier and get their money back faster when the wait time is shorter.

Key Structural Design Factors

• Span and eave height: Our standard configurations reach spans of 63.3 m with a 9 m eave height, delivering column-free interior space suitable for large machinery or bulk inventory.
• Roof and wall cladding: Single-skin steel sheeting suits budget-conscious open-air applications; insulated sandwich panels are specified where thermal regulation matters, such as food processing or pharmaceutical staging areas.
• Surface treatment: Galvanized purlins and coated roofing sheets extend the corrosion resistance profile, particularly important in coastal or chemically active environments.

You can tell right away how long the building will last, how well it will use energy, and how much it will cost to put together. When everything is ready, the pre-made parts are sent to the site and given bolts to put them together. It's good to have less work to do on-site.

Solar and Smart Integration Options

During the design phase, we can change the structural load calculations for our steel shade systems to account for the dead loads of PV modules and the path of the electrical conduit. Green building certifications can be earned by people who own transportation companies and industrial parks. The roof can protect their buildings from the weather and generate clean energy.

Procurement Insights: How to Source and Evaluate Steel Structure Shade Providers

You should be just as careful when looking for a steel shade structure provider as you would be when buying big-ticket items. If you make the wrong choice, you might miss deadlines, get materials that don't meet standards, or not get enough help after the installation.

Supplier Qualification Criteria

If a steel structure shade manufacturer is chosen, procurement managers should make sure that the company has current ISO9001 certification, can show that it meets CE or ASTM standards for the application, and has enough production capacity to meet project deadlines. Our factory can make 50,000 tonnes of steel structures every year, so customers can be sure that even big or complicated orders won't cause supply problems.

Understanding the Full Cost Breakdown

A steel shade structure's total price includes the materials, the building, the finishing of the surface, the shipping, the installation instructions, and on-site. We usually need 90 days from the time we confirm the order to the time we hand over the project. When clients think about all of these things during the bidding process, they avoid budget surprises that can stop projects in the middle of construction.

Evaluating Technical Support Capability

They are still useful after they leave the plant. Our team helps clients with planning, making design drawings, putting together bid documents, and getting help with installation on-site. The overall project timeline is cut down by this end-to-end service model, which makes it easier for project managers to coordinate.

Installation and Maintenance Best Practices for Optimal Longevity

A steel shade structure is a big investment, and you need to be careful to protect it both when you install it and when you keep it in good shape.

Pre-Installation Site Assessment

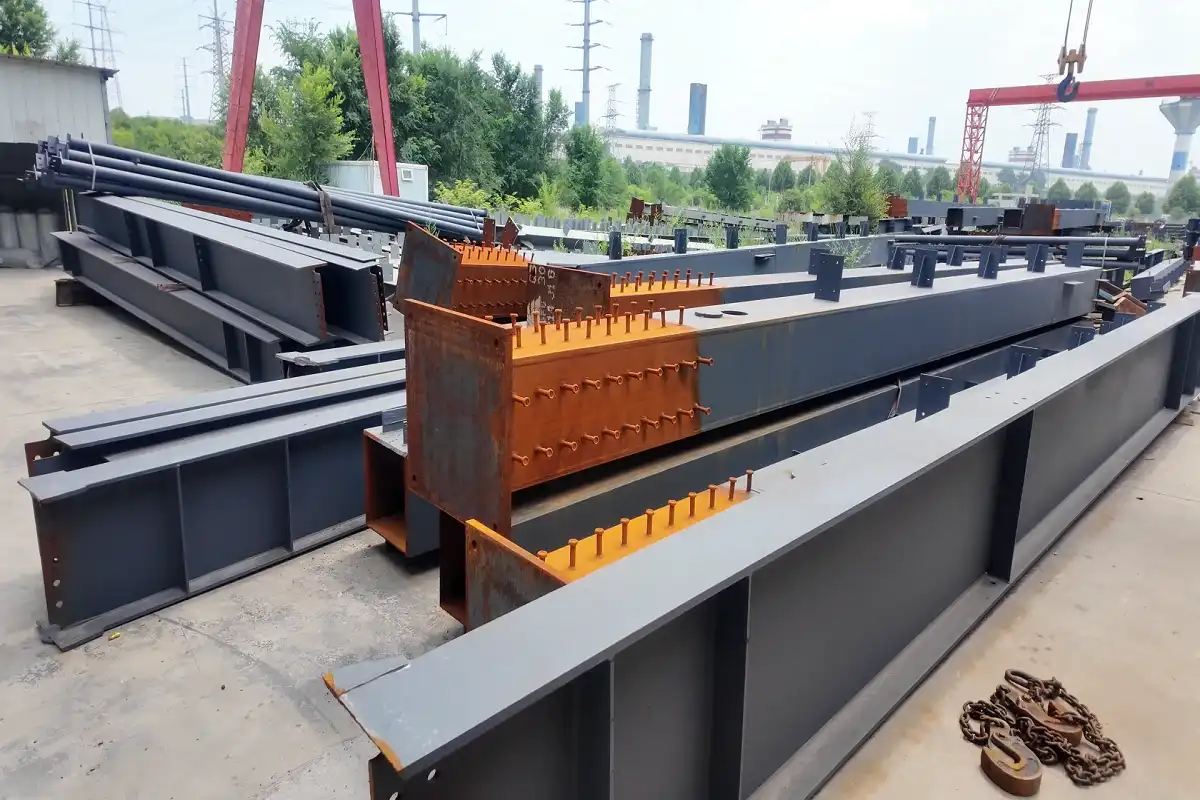

Before any part is brought to the site, a full foundation assessment should be done to check the soil's ability to hold weight, its drainage patterns, and any potential utility problems. Ground preparation is an important step that shouldn't be skipped for portal-frame systems that use H-beams and square steel tubes. When the site is ready, the chance of having to do more work is lower, and the assembly schedule stays on track.

Routine Maintenance Schedule

The steel frame is hot-dip galvanised and powder-coated, so the finish maintenance cycle is longer than 15 years in normal situations. As part of routine maintenance, the bolt torque should be checked every two years, the purlin connections should be checked for signs of corrosion, and the roofing sheets should be cleaned every so often to keep them reflective and stop debris from building up. These tasks don't need any special tools and don't take a lot of time.

Addressing Common Structural Issues

Things that go wrong most often in the field are wind uplift, thermal expansion at purlin joints, and surface oxidation at cut edges. Most corrosion problems can be stopped before they get worse by using protective coatings with a C5-M rating on cut edges that are left open and duplex stainless steel fasteners in marine or high-humidity areas. A qualified engineer should do a visual inspection once a year to help find any wear and tear early.

Conclusion

A steel structure shade offers versatile coverage for more than just vehicle parking, making it suitable for sports facilities, solar-powered transport hubs, outdoor event venues, and commercial spaces. By using Q235 or Q355 structural steel and an appropriately engineered portal-frame design, a steel structure shade can provide a durable framework for different site requirements. For outdoor events, buyers may choose a high-eave configuration to accommodate equipment and activities, along with insulated sandwich panels for improved thermal performance or a single-skin roof for a lighter, more economical covering solution. The right design for a steel structure shade depends on factors such as local weather conditions, wind loads, intended use, and required clearances. Accurate material specifications and professional engineering are essential to ensure structural reliability and compliance with applicable building codes. When sourcing a steel structure shade, procurement teams should also assess the manufacturer's production capacity, delivery schedule, quality documentation, and ability to provide technical support during installation. By selecting suitable materials and working with a dependable supplier, buyers can ensure that their steel structure shade meets project requirements and provides practical, long-term coverage for commercial and outdoor applications.

FAQ

How long does a steel shade structure typically last?

The steel frame has a powder-coated finish and is hot-dip galvanised, so it will last for more than 25 to 30 years. If the cladding has membrane parts, the panels should last between 10 and 15 years, but this depends on the grade of the material and the amount of UV exposure in the area.

Can a steel canopy structure be customized for solar panel integration?

Yes. During the engineering phase, the estimates for the structure's load-bearing capacity are changed to include the dead loads from the PV modules and the electrical conduit that goes with them. This is a common design request that our team gets all the time.

What are the main cost factors for a steel shade structure project?

The main things that affect the cost are the span width, the eave height, the type of cladding (single-skin vs. insulated sandwich panel), the surface treatment, and the level of on-site installation support. When you buy something made to order, you usually have to wait 90 days from the time you confirm your order until you hand over the project.

Does steel perform well in high-humidity or coastal environments?

Yes, C5-M rated protective coatings and duplex stainless steel fasteners are designed for coastal and chemically active areas. They offer reliable corrosion protection without the need to paint often.

Is a steel shade structure suitable for food or pharmaceutical facility staging areas?

Steel shade systems can be used in places like food processing and pharmaceutical staging areas where keeping the temperature down and keeping things clean are important.

Get a Custom Steel Structure Shade Quote from Luoyang Innovation Building Material Co., LTD

Luoyang Innovation Building Material Co., Ltd. has a 50,000-square-meter factory that is ISO9001, CE, and ASTM certified. Each year, they make 50,000 tons of steel structures. We are a dependable Steel Structure Shade provider that can do everything, from planning and building to giving you advice on-site. We finish jobs on time and according to the instructions given. Email our team at eric@cxsteelstructure.com or visit innovationsteelstructure.com right now to get a quote that fits your needs.
