Steel Structure Commercial Building
Building Style: Compact enclosed steel structure
Country of Origin: China
Frame System: Lightweight H-beams or square steel tubes with galvanized purlins
Supply Scope: Design, production, packaging and installation guidance
Suitable For: Vehicle shelters, machinery storage and repair workshops
Standards: ISO9001, CE, COC, PVOC certified
Lead Time: Rapid manufacturing
Product Description
Premium Steel Structure Commercial Building Solutions – Fast-Build, High-Strength Systems for Modern Business Facilities
Industry-leading Steel Structure Commercial Building solutions are provided by Luoyang Innovation Building Material Co., LTD to companies that require quick deployment and exceptional performance. We specialize in lightweight H-beam and square tube steel frames with galvanized purlins, supported by a 50,000-square-meter production facility and an intelligent manufacturing process that can produce 50,000 tons per year. When compared to conventional approaches, our solutions achieve spans greater than 60 meters while cutting construction durations by 30 to 50%. Every project, which is certified to ISO9001, CE, COC, and PVOC standards, comprises thorough design, precise production, expert packing, and installation advice, guaranteeing that your commercial facility opens more quickly with a smaller overall outlay.
Why Choose Steel Structure Commercial Building for Your Business Facility
There is increasing demand on modern businesses to complete projects faster while keeping expenses under control. Commercial Building systems use prefabricated parts made in rigorous factories to overcome these difficulties. This construction approach produces predictable results and removes weather delays.
Because of steel's remarkable strength-to-weight ratio, smaller foundations are needed for your project. When compared to reinforced concrete, you will save 30–40% on structural weight. By increasing usable floor area by 3–8%, thinner columns directly increase your operating space or rental income.
The material's natural ductility offers exceptional resistance to wind and earthquakes. Steel frames absorb energy thru controlled deformation rather than catastrophic breakdown in earthquake zones or typhoon-prone coastal areas.
Technical Specifications and System Components
Our Steel Structure Commercial Building packages integrate precision-engineered elements for reliable performance:
| Component | Specification |
|---|---|
| Primary Frame | Lightweight H-beam or hot-rolled square tube |
| Secondary System | Galvanized C/Z-type purlins with tension rods |
| Connection Method | High-strength friction-grip bolts (Grade 8.8S/10.9S) |
| Surface Treatment | Hot-dip galvanization + epoxy topcoat |
| Fire Protection | Intumescent coatings (1-4 hour FRR) |
| Wind Load Capacity | Up to 55 m/s design wind speed |
| Seismic Rating | Grade 8 earthquake resistance |
| Corrosivity Class | C4/C5 (ISO 12944) for coastal zones |
Factory prefabrication ensures dimensional accuracy within ±2mm. Bolt holes align perfectly during site assembly, eliminating costly field modifications.
Comprehensive Application Scenarios
Systems for commercial buildings perform well in a variety of commercial settings. Slim column profiles that optimize rentable square footage are advantageous for urban office skyscrapers. Without compromising interior flexibility, the strong frame design ensures stability in high-wind coastal areas.
Steel's long-span capabilities is used in large shopping complexes and show halls. Interiors longer than 60 meters without columns allow for dynamic floor plans. Retail zones can be rearranged, and there are no structural restrictions when installing thick glass curtain walls.
In harsh climates, cold-chain logistics hubs benefit greatly. In below-freezing temperatures, rapid dry construction takes place, making concrete curing difficult. Thru freeze-thaw cycles, the system retains structural integrity while withstanding large snow loads.
The spacious interior spaces are appreciated by machinery workshops and auto repair shops. Efficient equipment layouts and unhindered truck movement are made possible by wide clear spans, which remove obstructive columns.
Superior Construction Efficiency and Economic Value
Time equals money in commercial real estate. Our Commercial Building approach compresses your construction schedule by 30-50%. Components arrive site-ready for bolt-together assembly. No curing periods. No weather delays. Your business opens faster, generating revenue months ahead of traditional builds.
Lower foundation costs deliver immediate savings. Steel's light weight reduces soil preparation and excavation depth. In soft soil conditions, this advantage becomes especially pronounced—foundation expenses can drop by 40% or more.
Operational costs remain manageable throughout the building's lifecycle. Simple maintenance routines and durable coatings protect your investment. Steel's 100% recyclability generates salvage value at end-of-life, contributing to positive ESG metrics.
Quality Assurance and Manufacturing Excellence

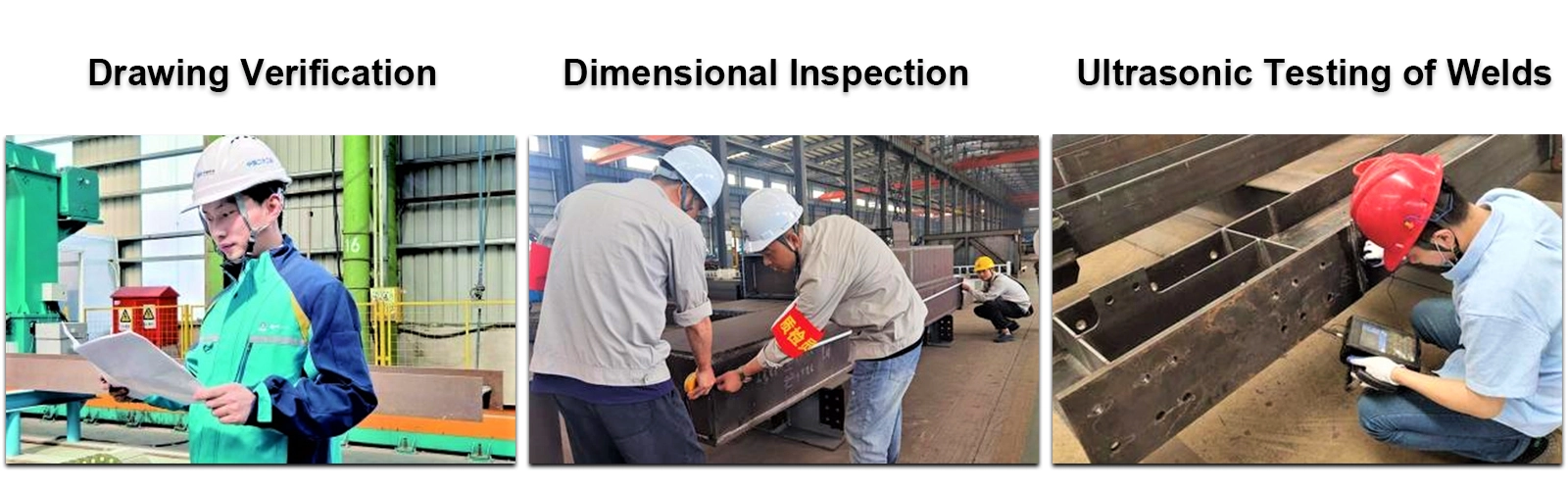

Every stage of the project is subject to five-stage quality control. Mandatory Mill Test Certificates verifying the chemical composition and mechanical qualities of raw materials are the first step in the verification process. Our production line only uses certified steel.
100% visual examination is applied to welding integrity. According to AWS D1.1 guidelines, critical connections are subjected to non-destructive testing utilizing ultrasonic or magnetic particle techniques. Dry Film Thickness measurements are used to validate surface treatments, guaranteeing that coating systems satisfy ISO 12944 durability standards.
Torque testing is performed on high-strength bolt connections to verify appropriate preload. Before parts leave our facility, pre-shipment trial assembly confirms geometric accuracy by examining verticality, span measurements, and bolt-hole alignment.

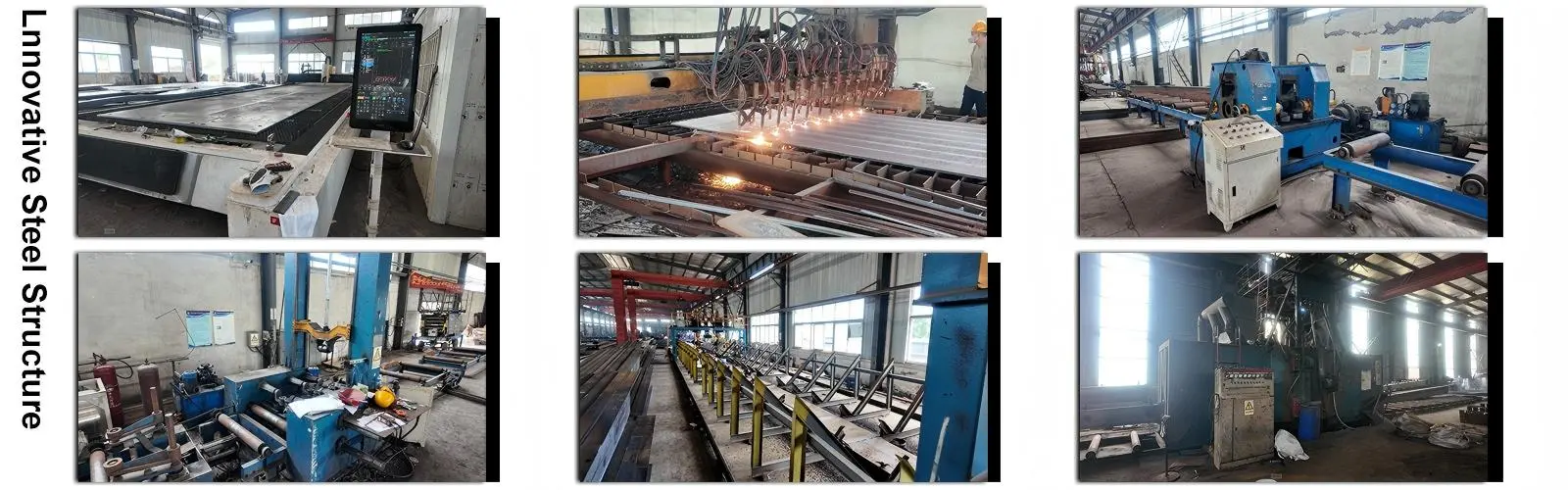

Manual methods cannot match the precision maintained by our sophisticated production line. Human mistake is eliminated by computer-controlled drilling and cutting. On-site, you receive parts that fit together perfectly.
Environmental Benefits and Sustainability Leadership
Green building mandates are reshaping commercial construction. Steel structure systems align perfectly with modern sustainability requirements. Dry construction methods generate minimal dust and noise compared to concrete pouring operations.
Construction waste drops dramatically. Prefabricated components arrive cut to exact dimensions. Offcuts and surplus materials return to the steel recycling stream rather than filling landfills.
At building decommissioning, nearly 100% of structural steel can be recycled into new products. This circular economy approach reduces embodied carbon and qualifies projects for LEED and BREEAM credits.
Energy efficiency improves through optimized thermal envelope design. Thin steel frames create less thermal bridging than thick concrete members. Your HVAC systems operate more efficiently, reducing operational carbon footprints.
Frequently Asked Questions
Q: How does steel perform during fire events?
A: We apply intumescent coatings or vermiculite sprays providing 1 to 4-hour fire resistance ratings. These treatments meet UL 263 and Eurocode standards, ensuring occupant safety and insurance compliance.
Q: What lifespan can I expect?
A: With proper maintenance and modern C4-grade protective coatings, these structures deliver 50+ years of service. Routine inspections every 5-10 years keep systems performing optimally.
Q: Is steel construction more expensive than concrete?
A: Material costs may be higher, but total project expenses typically run 10-20% lower. Reduced foundation requirements, 40% lower labor costs, and earlier business opening dates create compelling financial advantages.
Q: Can the building layout be modified later?
A: Absolutely. Steel's modular nature simplifies reinforcement, vertical expansion, or floor plan reconfiguration. You adapt to changing business needs without major structural interventions.
Q: How do you prevent corrosion in coastal locations?
A: We employ hot-dip galvanization combined with duplex coating systems—zinc primer plus epoxy and polyurethane topcoats. This protection withstands salt-spray environments per ASTM B117 testing protocols.
Q: Does extreme cold affect structural performance?
A: Steel maintains strength and ductility in sub-zero temperatures. Our designs account for thermal contraction and heavy snow loads common in northern climates.
Contact Us for Your Next Commercial Project
Ready to accelerate your Steel Structure Commercial Building project with proven steel structure technology? Our engineering team stands ready to transform your vision into reality. From initial design through final installation guidance, we deliver turnkey solutions backed by decades of manufacturing expertise.
Contact eric@cxsteelstructure.com today to discuss your specific requirements and receive a detailed technical proposal.
