What Results Can Steel Structure Bracing Bring to Long-Span Structures?

Steel structure bracing delivers measurable gains in lateral stability, load distribution, and structural longevity for long-span buildings. By introducing diagonal members, X-bracing, or moment connections into a primary frame, bracing redirects wind and seismic forces along defined load paths, preventing drift and global buckling. For warehouses, pharmaceutical facilities, food processing plants, and semiconductor factories — where column-free floor areas are non-negotiable — a properly designed bracing system is the engineering decision that keeps every other system safe and compliant.

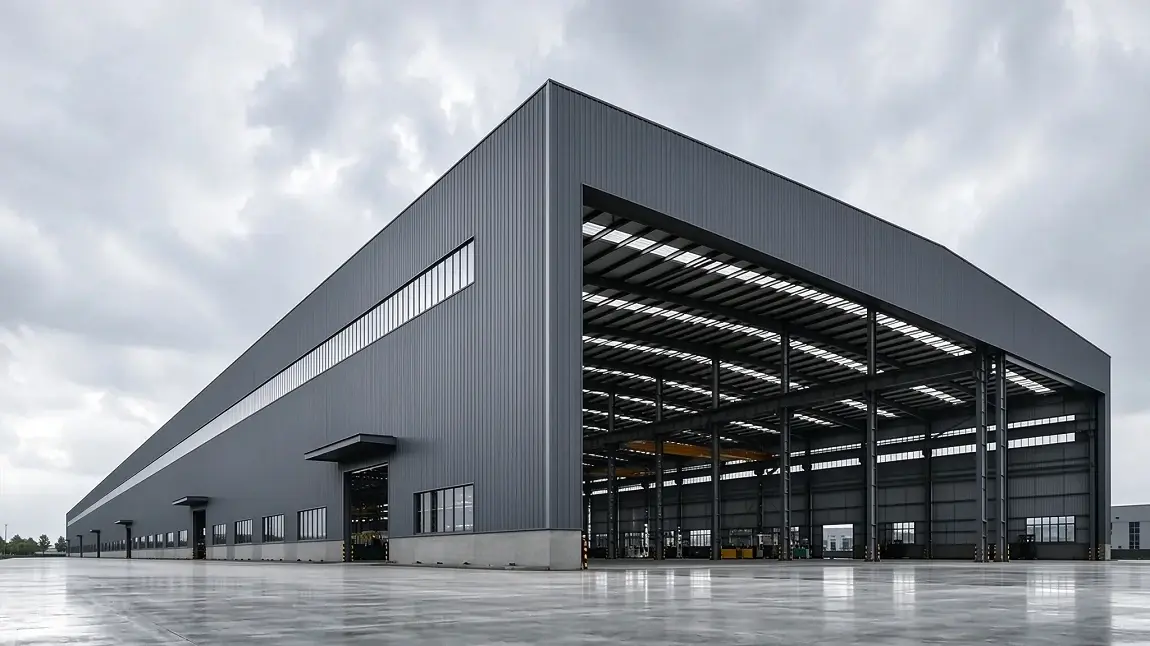

Long-span steel structure support

Understanding Steel Structure Bracing in Long-Span Structures

Wide bays in long-span buildings aren't held in place, so when the building moves from side to side, the wide bays move with it. This problem is fixed by Steel Structure Bracing by adding more steel members to the main frame. With these extra steel pieces, a stiff web is made that doesn't change the floor plan but sends horizontal forces to the base.

What Bracing Actually Does Structurally

When axial loads make horizontal movement bigger, an effect known as the P-Delta effect happens. If you wear braces, this won't happen. Our doorway rigid-frame products usually come in 63.3 m x 36.5 m x 9 m sizes. Poles that aren't supported would have too much moment demand if the wind speed isn't very strong. When you strengthen, that twisting force changes into an axial force, which steel can take much better.

Why Long-Span Structures Need It Most

Make the supporting bay longer to move from side to side. These are buildings that store tools and work areas. Most of them have spans that are longer than 30 meters. A 90-mph gust of wind or even something as small as a rock can put too much stress on that concrete filler, making it dangerous to use.

Material Properties That Make It Work

Square steel tubes and H-beams made of Q235 and Q355 steel are used to make our frames. These steels have yield strengths of 235 MPa to 355 MPa, which means they can be stretched about 200 GPa. Because of this, steel buildings are very strong for how light they are. Like, structures made of steel that are the same size as structures made of reinforced concrete are usually 30–40% lighter. Even though the foundations don't have to hold as much weight, they still have to be Seismic Grade 6 and Fire Resistance Class II.

Types and Design Principles of Steel Structure Bracing

You can choose the right brace design based on the shape of the span, the weight, and the needs of the job. The steps for each type of load transfer are laid out in AISC 360 and EN 1993-1-1 (Eurocode 3).

Diagonal and X-Bracing

Diagonal Steel structure bracing helps stabilize a building by connecting structural members across a bay to resist lateral forces. An X-bracing system uses two diagonal members that cross each other, allowing the structure to resist wind loads acting from either direction without necessarily requiring larger beams. This makes Steel structure bracing a practical solution for many single-story commercial and industrial buildings. Depending on the structural design, engineers may use tension-only diagonal members or configure the system so both diagonals contribute to resisting lateral loads. In buildings with wide roof spans, Steel structure bracing can also be incorporated into roof and wall framing to improve overall stability and transfer wind forces safely to the foundations. Selecting the appropriate Steel structure bracing system requires consideration of building dimensions, steel member properties, connection details, local wind conditions, and applicable building codes. With proper engineering and installation, Steel structure bracing can help control lateral movement, maintain structural integrity, and support reliable long-term building performance.

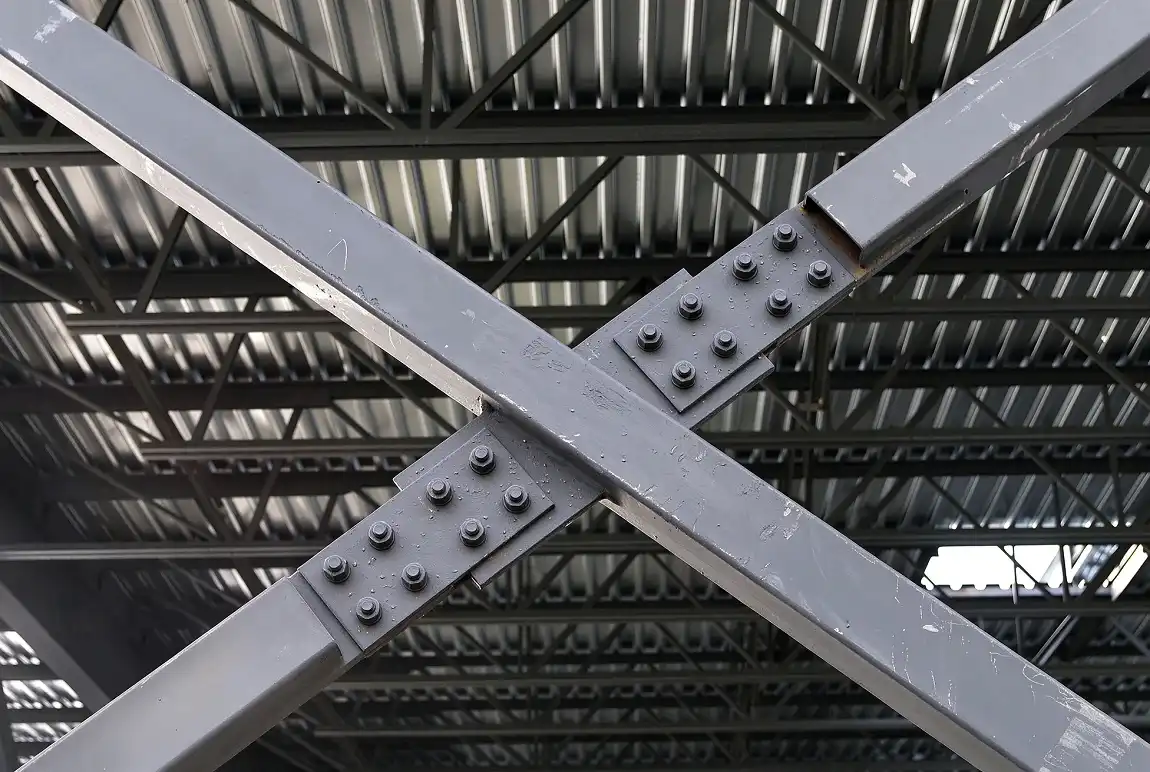

Column mounted ladder support

K-Bracing and Chevron Bracing

Chevron bracing, which looks like an upside-down V, connects two parts of a beam that run parallel to each other in the middle. It keeps door and aisle spaces that diagonal bracing would take up, which is important for plans to make drugs and process food. Many times, K-bracing isn't used in places where there are earthquakes because the beam could fall if the brace breaks in different places.

Moment Frames as a Complementary System

Moment frames can't use their vertical parts to fight side pressure. Instead, they use rigid beam-column connections to link them together. They're useful in places where vertical support isn't possible because of holes in the building. X-bracing along the inside bays and moment frames at the gable ends make the building stiff while still letting the floor plan be flexible. This is how many long-span industrial projects are built in real life.

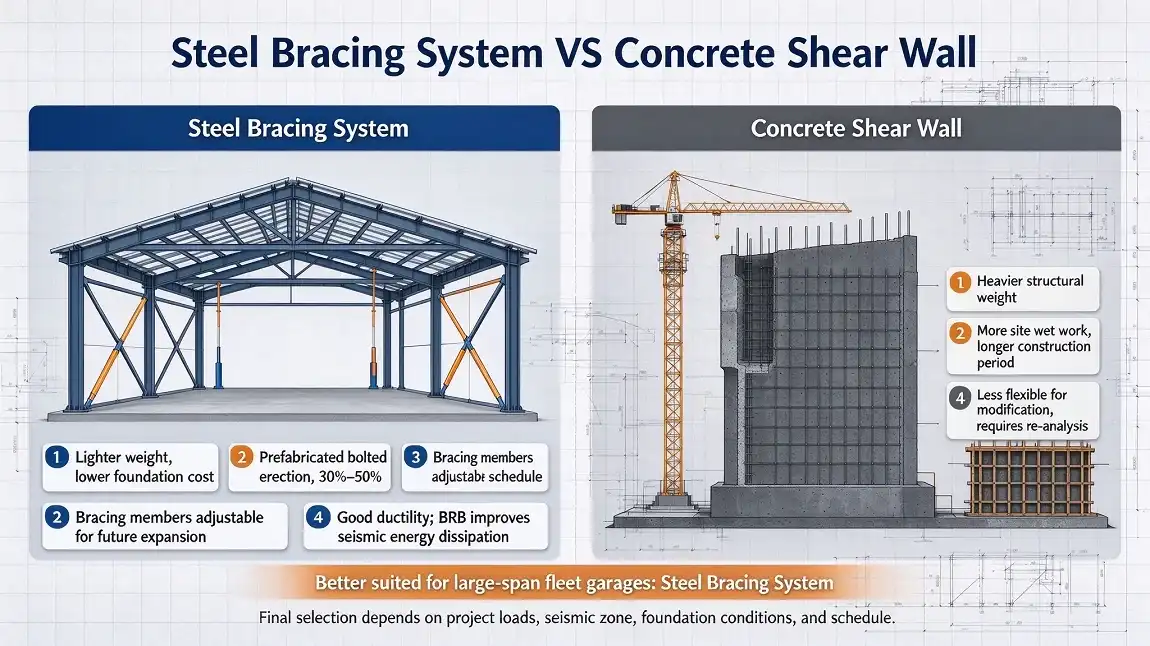

Comparing Steel Structure Bracing with Alternative Solutions

Some teams that buy things often wonder if they can switch from braced steel systems to moment-only frames or concrete shear walls. In the business world, steel stiffening is always the best choice for long spans, but it depends on the project.

To make it easy to see, here are the metrics that tech managers and purchasing teams care about the most:

Weight and Foundation Cost: Steel bracing systems are 30–40% lighter than concrete shear walls, directly reducing pile depth and ground improvement costs — a meaningful saving on large-footprint sites.
Construction Speed: Prefabricated steel bracing components arrive dimensionally accurate from the factory and bolt together on-site, trimming total construction time by 30–50% versus cast-in-place concrete alternatives.
Adaptability: Diagonal and chevron configurations can be repositioned or removed during future facility expansions. Concrete shear walls are permanent and difficult to modify without structural re-analysis.
Seismic Energy Dissipation: Steel's ductility allows it to absorb seismic energy through controlled deformation. Buckling-Restrained Braces (BRBs), used in high-seismic zones, act as structural fuses that protect primary members during earthquakes while remaining replaceable afterward.

It takes 30–50% less time to build with prefabricated steel bracing parts than with cast-in-place concrete. This is because the parts are already the right size when they come from the mill and can be bolted together on-site.- If the building needs to get bigger in the future, the zigzag and vertical shapes can be moved or taken away. You have to look at the whole building again if you want to change a concrete split wall.-- Dissipation of Seismic Energy: Because it can bend without breaking, steel can take in the energy of an earthquake. When used in high-seismic zones, Buckling-Restrained Braces (BRBs) protect the main parts of a building during earthquakes and are easy to repair afterward.

Procurement Insights: Buying and Installing Steel Structure Bracing

Procurement decisions for bracing systems involve more variables than unit price. Lead time, material traceability, and fabrication accuracy each carry weight when a delayed component can stall an entire project.

Evaluating Supplier Capability

A credible steel structure bracing supplier should provide Mill Test Reports (MTRs) confirming chemical composition and mechanical properties for every heat of steel used. Dimensional accuracy matters: a 2 mm deviation in gusset plate hole alignment can compromise axial load transfer at the connection. Weld integrity should be verified through Non-Destructive Testing, including Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI).

Lead Times and Delivery Planning

Our portal rigid-frame systems operate on a made-to-order model with a 90-day lead time from order to project handover. All components are standardized and prefabricated at our 50,000 m² production base, which operates an intelligent steel structure processing line with an annual capacity of 50,000 tons. Certifications include ISO9001, CE, ASTM material compliance, COC, and PVOC.

certificate

Installation and On-Site Coordination

Proper installation follows a defined sequence: foundation anchor bolt placement, column erection, primary rafter installation, then bracing member insertion and bolting. Slotted holes at bracing connections accommodate thermal expansion and prevent induced bolt shear stress. Our service scope covers structural design, fabrication, surface treatment, packaging, installation drawings, and on-site guidance — reducing coordination risk for project managers handling multi-trade schedules.

The Impact of Steel Structure Bracing on Long-Span Building Performance

When bracing is put in the right place, it does a lot more than just make the building stronger.

Safety and Seismic Performance

When a building is hit from the side, it will bend in a controlled way if it is braced to Seismic Grade 6 standards. Since steel is smooth and easy to shape, it can take in energy without breaking. This isn't possible with concrete shear systems when the weight is the same. A building that falls could damage or kill people in places where drugs and food are kept, so this is important.

Economic and Schedule Benefits

Standard ways of building take 30% to 50% longer and cost 30% to 50% more than lightweight steel ways. This means that the boss or owner of a business can get the money back faster and the work can begin earlier. The useful floor space also grows by 3 to 8 percent. This is because steel supports are thinner than concrete ones, which makes the floor space bigger.

Long-Term Sustainability Value

Steel needs to be used again. Even after a building is taken down, the main frames and bracing members can still be used as scrap. They do not make a lot of building trash. When the US gets things in the tech, drug, and food industries, ESG reporting is becoming more important. This fits with that need.

Conclusion

Long-span buildings that were not safe before are now always safe thanks to Steel Structure Bracing. It can be used instead of concrete because it is lighter, easier to set up, and can evenly handle slope changes, wind, and earthquake forces. People who work in industry, building, electronics, pharmaceuticals, food, and electronics need to pick the right support system early on in the planning process. This protects the building and the money for the project. What makes a building safe or dangerous is how well the materials work, how well it was built, and how real the source is.

FAQ

How does slenderness ratio affect bracing performance?

A lower slenderness ratio (L/r) increases the compression capacity of a brace member, preventing premature buckling under heavy axial loads. Engineers specify member size and effective length to keep L/r within code-prescribed limits for the expected loading scenario.

Can X-bracing be used in seismic zones?

Yes. X-bracing performs well in seismic zones because both tension and compression diagonals share the lateral load. Buckling-Restrained Braces offer an advanced alternative, absorbing seismic energy through controlled yielding while protecting the primary frame.

What maintenance does bracing require in industrial plants?

Annual visual inspections at gusset plate connections and bolt groups are standard practice. Inspectors look for signs of corrosion, connection fatigue, or bolt loosening. Galvanized surface treatment, applied to our purlins and structural members, extends coating life and reduces inspection frequency.

What certifications should a supplier hold?

For US-market projects, look for ISO9001 quality management certification, CE marking, and ASTM material compliance documentation. These credentials confirm that manufacturing processes and material properties meet internationally recognized standards.

How customizable are the panel and roofing options?

Roof and wall configurations are available in single-skin steel sheeting or insulated sandwich panels, with customizable span lengths. Panel selection depends on thermal performance requirements, cleanroom classification, and local building codes.
