Galvanized Color-Coated Steel

Galvanized Color-Coated Steel Solutions for Industrial Roofing and Cladding Applications

With strict quality standards and large-scale production capabilities, Luoyang Innovation Building Material Co., LTD specializes in producing high-end galvanized color-coated steel. We distribute more than two million square meters of building materials every year from our 50,000-square-meter production base, guaranteeing a steady supply for challenging construction projects. Our color-coated steel has adjustable widths from 750 to 1250mm and zinc coating ranging from 30 to 275g/m² thickness options between 0.2 and 0.6mm. We offer dependable solutions that combine excellent corrosion resistance, structural integrity, and esthetic adaptability, all supported by globally advanced intelligent manufacturing technology and ISO-9001 certification.

What Makes Our Galvanized Color-Coated Steel Different

On hot-dip galvanized substrates, our product uses a continuous coil coating technique. Surface pretreatment is the first step in the manufacturing process, which is followed by the precise application of organic coatings like PVDF or polyester.

The irregularities of manual painting are eliminated by this factory-controlled finishing. Every square meter of your space is uniformly protected. The organic topcoat protects against chemical exposure and UV deterioration, while the zinc layer offers sacrificial protection against corrosion.

This degree of consistency is unmatched by conventional spray-painted steel. By ensuring that each coil satisfies the same exacting criteria, our procedure minimizes project delays brought on by material variability.

Technical Specifications You Can Rely On

The zinc coating weight directly impacts service life. For coastal industrial zones, we recommend Z275 coating with PVDF topcoat for maximum durability. Standard inland applications perform excellently with Z120 and polyester finishes.

Where Your Projects Benefit Most

Material deterioration is increased in industrial facilities located in high-pollution areas. This problem is directly addressed by our Galvanized Color-Coated Steel. The multi-layer protection system successfully fends off chemical odors and corrosion caused by salt spray.

Both performance and esthetics are required for commercial roofing projects. Depending on the coating choice, our solution provides weathertight sealing and color constancy for 15 to 30 years. You may complement architectural themes or company logos without compromising thanks to the broad color pallet.

Building materials for cleanrooms must be resistant to repeated chemical cleaning. The smooth surface and chemical resistance of the coating stop contaminants from building up. The material's moisture barrier and thermal stability are advantageous to cold storage facilities.

Agricultural buildings are less expensive since they are easy to install and require less upkeep. Even in the ammonia-rich conditions typical of animal facilities, the material is resistant to rust.


Performance Advantages That Protect Your Investment

High tensile strength supports structural loads without excessive thickness. This reduces dead load on building frames and foundation requirements. Corrosion resistance extends replacement cycles, lowering lifecycle costs substantially.

Our rich color selection eliminates the need for post-installation painting. You receive material ready for immediate installation, cutting project timelines significantly. The pre-finished surface maintains appearance without periodic repainting.

Waterproof performance comes from precise edge profiling and interlocking panel designs. Proper installation creates weather-tight building envelopes that protect interior assets. Simple maintenance involves occasional rinsing—no specialized treatments required.

Economic durability stems from the combination of protective layers working synergistically. The zinc provides electrochemical protection, the primer ensures adhesion, and the topcoat blocks environmental attack. This engineered system outperforms single-layer alternatives.

Installation and Forming Considerations

The material's formability allows roll-forming into various profiles without coating damage. Our T-bend specification ensures flexibility during fabrication. Standard forming equipment handles the material with minimal adjustments.

Cut edges in highly corrosive environments benefit from edge-sealing compounds. The zinc layer offers sacrificial protection, but additional treatment extends protection at exposed edges. Your installation team should follow standard metal roofing practices.

Fastener selection matters for long-term performance. Use coated fasteners compatible with the panel finish to prevent galvanic corrosion at connection points. Proper installation maintains warranty coverage and maximizes material lifespan.

Quality Control From Production to Delivery

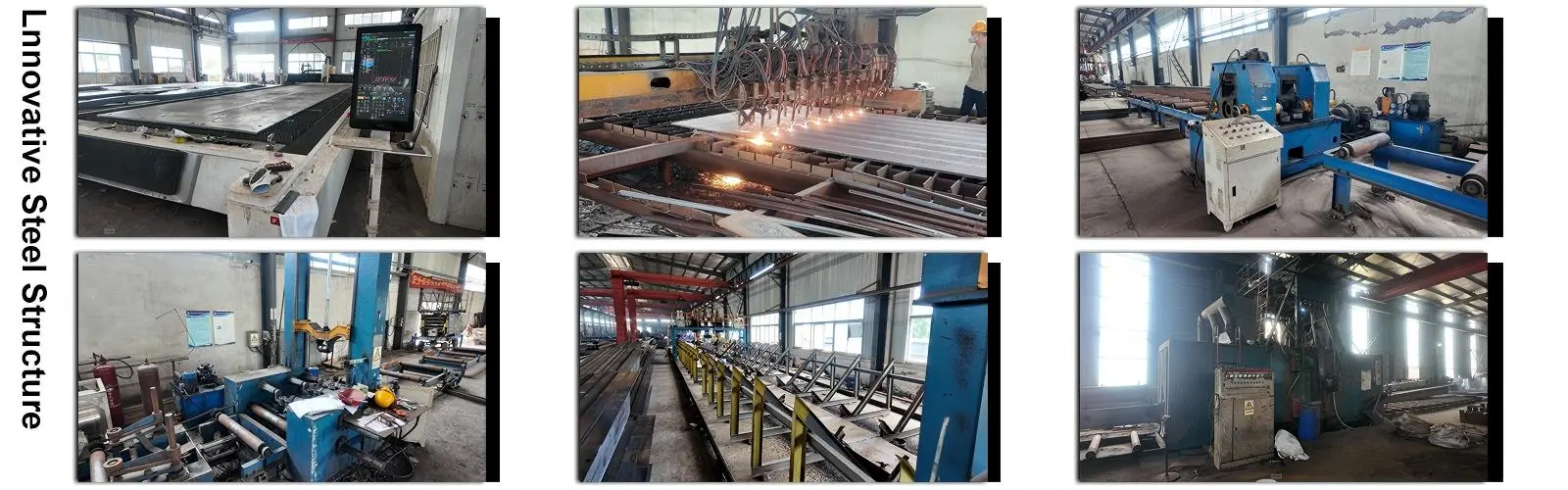

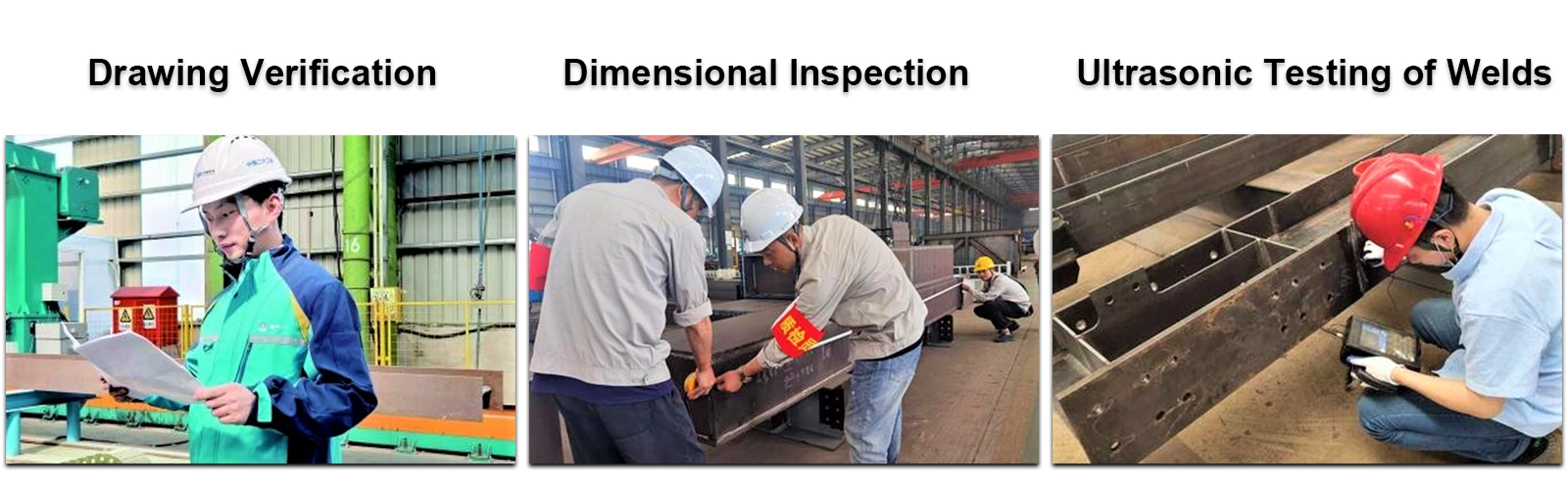

Real-time monitoring of coating thickness, adhesion, and color consistency is provided by our intelligent steel structure processing line. Before being shipped, each coil is subjected to MEK rub testing, pencil hardness testing, and flexibility testing.

Consistent material availability for your project deadlines is ensured by the 50,000-ton annual manufacturing capacity. Our technical staff ensures the best possible material performance by offering engineering help from design review to installation guidance.

International quality compliance is ensured by strict adherence to ASTM A755/A755M, EN 10169, and JIS G3312 standards. Our production methods are further validated by third-party certifications from SGS and BV.

Frequently Asked Questions

Q: How long will the coating last in outdoor applications?

A: Service life ranges from 15 to 30 years depending on zinc mass, coating type, and environmental exposure. PVDF coatings in standard climates typically exceed 25 years.

Q: Can this material be welded?

A: Yes, with proper technique. The weld zone requires zinc-rich paint application after welding to restore corrosion protection at the affected area.

Q: What causes edge rust after cutting?

A: Exposed steel at cut edges lacks zinc protection. Apply edge sealant in corrosive environments or utilize the zinc's sacrificial protection in mild conditions.

Q: Which coating performs better—PE or HDP?

A: HDP (High-Durability Polyester) provides superior UV resistance and weatherability compared to standard PE, offering performance between PE and premium PVDF.

Q: Will the paint crack during forming?

A: Properly specified material with correct T-bend properties (2T or 3T) and optimal pretreatment maintains coating integrity through standard roll-forming operations.

Q: What thickness should I specify for roofing applications?

A: Most roofing profiles use 0.4-0.5mm thickness, balancing structural performance with material cost. Specific requirements depend on span and load conditions.

Partner With Experienced Manufacturers

Luoyang Innovation Building Material Co., LTD supports your construction projects by combining technical know-how with large-scale production capacity. Custom color matching, material selection, and installation consultation are all included in our all-inclusive service.

Ready to specify the right Galvanized Color-Coated Steel for your next project? Contact our technical team at eric@cxsteelstructure.com for detailed specifications, samples, and engineering support tailored to your requirements.
