Steel Structure Pharmaceutical Plant

High-Performance Steel Structure Pharmaceutical Plant Solutions for GMP-Compliant Manufacturing Facilities

Turnkey Steel Structure Pharmaceutical Plant solutions designed for contemporary medicine manufacturing are Luoyang Innovation Building Material Co., LTD's area of expertise. We can deliver facilities with spans up to 180 meters and eave heights of 7.67 meters because to our integrated design-build method, which combines a 50,000-square-meter production base with an annual steel fabrication capability of 50,000 tons. Every project satisfies Class II fire ratings, Grade 7 seismic intensity levels, ISO cleanroom integration, and GMP regulations. We guaranty quick deployment for sterile fill-finish operations, biopharmaceutical R&D facilities, and API synthesis facilities thanks to our yearly production of more than 2 million square meters of building materials.

Why Choose Steel Framework for Pharmaceutical Manufacturing

The operational flexibility needed by the pharmaceutical sector today cannot be met by traditional concrete construction. Plant designs remove internal columns from production zones, resulting in clear floor areas that are necessary for high-bay storage systems and automated blister packaging lines.

Our clever production plant produces prefabricated parts, which are delivered to the site prepared for assembly. When compared to cast-in-place techniques, this process shortens building schedules by thirty to fifty percent. Your facility starts up months early, which speeds up the time it takes for essential drugs to reach the market.

Multi-level mezzanines for reactor vessels and distillation columns are supported by the intrinsic strength of Q355B grade steel, negating the need for extra load-bearing walls. Within the same building footprint, this structural efficiency results in an increase in useable floor area of 3–8%.

Core Engineering Specifications Of Steel Structure Pharmaceutical Plant

Our pharmaceutical plant structures utilize precision-engineered components that balance regulatory compliance with construction efficiency.

The modular nature of our system allows seamless integration of cleanroom envelopes. Wall panel tracks attach directly to secondary steel members, creating airtight junctions required for Grade A/B sterile zones.

Critical Applications in Pharmaceutical Production

API Synthesis and Chemical Processing

Facilities handling reactive chemistry require robust overhead crane support and acid-resistant structural coatings. Our designs incorporate reinforced roof trusses rated for 10-ton hoists, while column bases receive specialized polyurethane sealants that withstand chemical washdowns.

Sterile Injectable Manufacturing

Fill-finish operations demand ceiling heights that accommodate laminar airflow plenums and extensive HVAC ductwork. Plant configurations provide the 10-12 meter clearances necessary for these systems without compromising structural integrity. Penetration points for utilities are pre-engineered during fabrication, maintaining cleanroom classification during installation.

Biopharmaceutical R&D Laboratories

Research environments evolve rapidly as drug pipelines progress. Our bolted connection systems enable future reconfigurations—you can relocate interior walls or add equipment platforms without welding or concrete cutting. This adaptability protects your infrastructure investment as therapeutic focus areas shift.

Tablet Compression and Packaging Lines

High-speed pharmaceutical machinery generates vibration that can affect product quality. We specify composite metal floor decks with vibration-damping underlayments, achieving VC-A/B criteria for precision weighing zones and analytical lab equipment.

Construction Advantages for Pharmaceutical Projects

Pharmaceutical construction projects face unique challenges that steel frameworks directly address. Regulatory timelines create pressure to complete facilities quickly while maintaining compliance documentation.

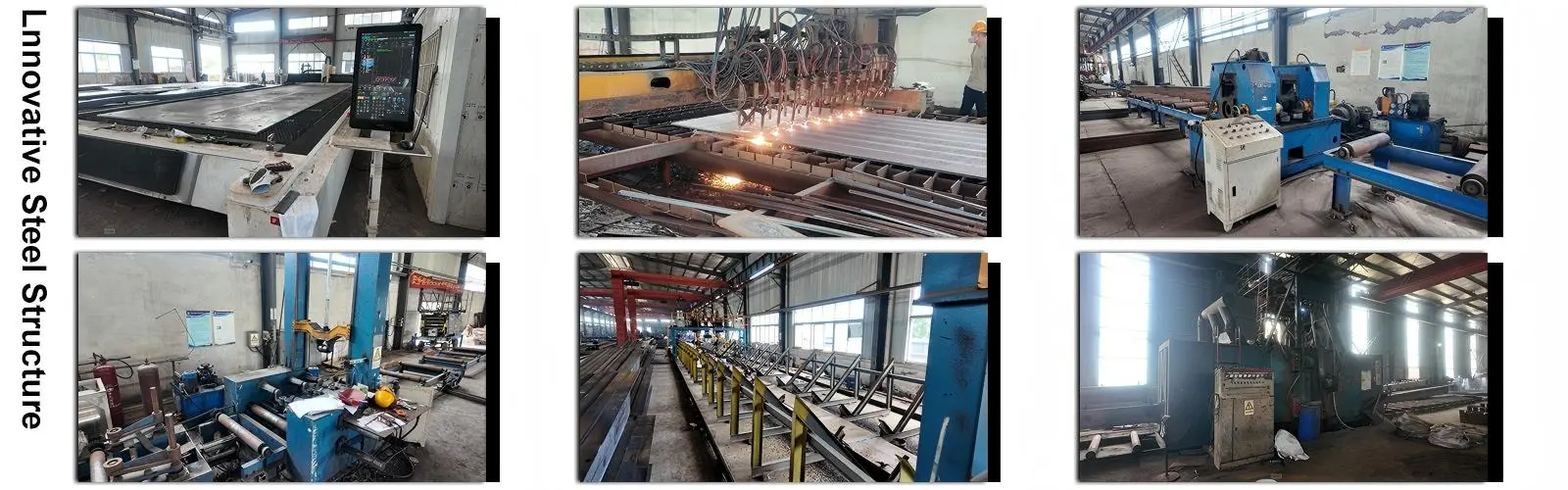

Off-site fabrication in our ISO9001-certified facility allows simultaneous foundation work and component manufacturing. Your project benefits from parallel workflows that traditional methods cannot achieve. Factory conditions ensure weld quality through controlled environments and automated processes.

Dry assembly methods eliminate the 28-day concrete curing periods that delay mechanical rough-ins. HVAC contractors and cleanroom installers can commence work weeks earlier, compressing your critical path schedule.

The lightweight nature of steel reduces foundation requirements by 30-40% compared to equivalent concrete structures. This translates to lower excavation costs and faster site preparation, particularly valuable when building on challenging soil conditions.

Environmental and Economic Performance

Steel's recyclability aligns with corporate sustainability mandates increasingly important to pharmaceutical companies. At end-of-life, 100% of structural components can be reclaimed and reprocessed without quality degradation.

During construction, Plant projects generate minimal waste. Precision fabrication means components arrive cut to exact dimensions—there's no need for on-site trimming that creates scrap material and disposal costs.

Energy efficiency improves when you pair our steel frameworks with high-performance insulated panels. PIR core materials achieve R-values up to 7.0 per inch, reducing HVAC operational costs throughout the facility's lifespan. Lower heating and cooling loads also decrease your carbon footprint.

Maintenance expenses remain minimal over decades of operation. Unlike concrete that can spall or crack, properly coated steel maintains structural properties with only periodic inspections. You avoid the costly repairs that plague older pharmaceutical facilities.

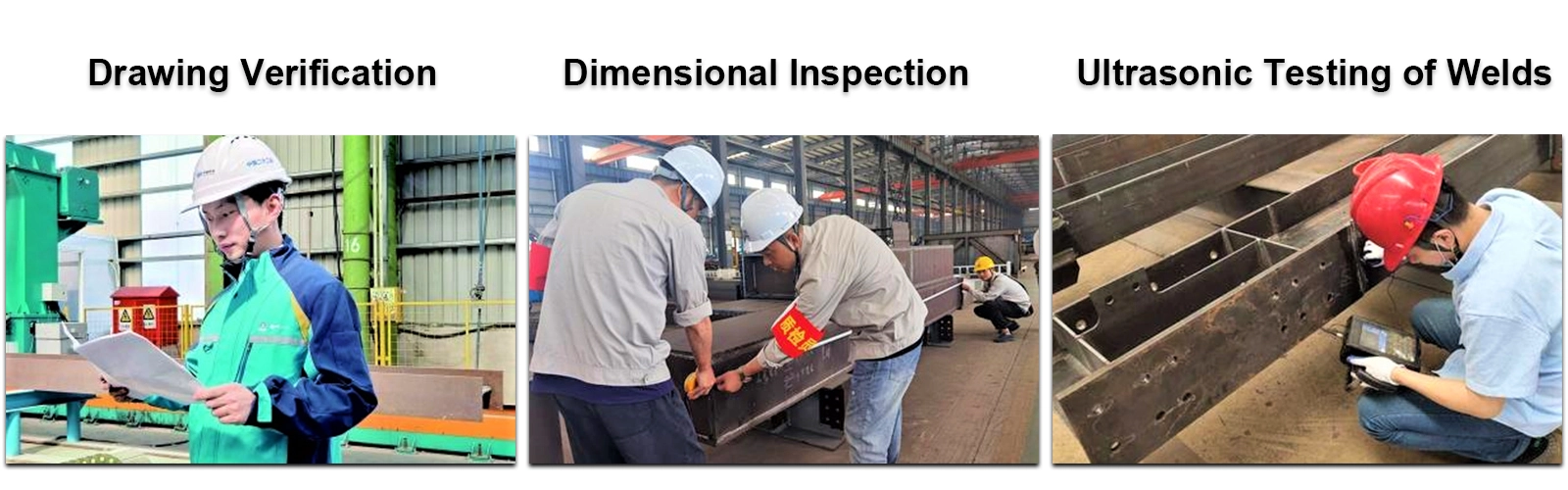

Quality Assurance Throughout Fabrication

Every Steel Structure Pharmaceutical Plant component undergoes rigorous inspection before leaving our production facility. Our quality control protocol includes:

Material Verification

Mill test certificates confirm chemical composition and mechanical properties of all incoming steel. We maintain full traceability from supplier to installed location.

Weld Inspection

Certified welding inspectors perform visual examination of 100% of joints, with ultrasonic testing applied to critical connections per AWS D1.1 standards. Any indication exceeding acceptance criteria results in repair and re-inspection.

Coating Thickness Measurement

Dry film thickness gauges verify that galvanization and paint systems meet C4 or C5 environmental durability classifications. This ensures your facility withstands frequent cleaning with aggressive disinfectants.

Dimensional Accuracy Checks

CNC cutting and robotic welding maintain tolerances within ±2mm across member lengths. This precision ensures cleanroom panels fit properly without gaps that compromise sterile barriers.

Frequently Asked Questions

Q: How does the structure accommodate future expansion?

A: Our designs incorporate pre-planned connection points in primary columns and roof members. When you're ready to expand, additional bays attach to existing framework without disrupting ongoing production areas.

Q: Can the building support rooftop solar installations?

A: Yes. Roof trusses can be engineered with additional capacity for photovoltaic arrays and mounting hardware, providing renewable energy generation without structural modifications later.

Q: What fire ratings apply to pharmaceutical applications?

A:We typically apply intumescent coatings that provide 2-hour fire resistance for primary structural members. This exceeds most jurisdictional requirements for industrial occupancies and satisfies insurance underwriter specifications.

Q: How do you prevent thermal bridging in temperature-controlled zones?

A: Secondary steel members receive thermal breaks at panel attachment points. Insulated sandwich panels span between purlins without direct metal-to-metal contact, maintaining envelope performance.

Q: Is vibration control possible for analytical lab equipment?

A: Absolutely. We design floor systems with composite decks and specify isolation mounts that achieve stringent VC-A vibration criteria necessary for precision balances and chromatography instruments.

Partner With Proven Pharmaceutical Infrastructure Experts

Your pharmaceutical manufacturing facility represents significant capital investment and regulatory commitment. Choosing the right structural system impacts operational efficiency for decades.

Luoyang Innovation Building Material Co., LTD brings together advanced manufacturing capabilities, pharmaceutical industry expertise, and comprehensive project support. From initial concept through final commissioning, our team ensures your Steel Structure Pharmaceutical Plant meets technical specifications, timeline requirements, and budget parameters.

Ready to discuss your pharmaceutical facility project? Contact our engineering team at eric@cxsteelstructure.com to receive a customized feasibility assessment and preliminary design concepts tailored to your production requirements.
