Their steel structures are exceptionally strong and precisely manufactured. The entire production process was highly professional.
Steel Frame Casas
Product Appearance: Large-span steel building featuring a portal rigid frame design
Manufactured In: China
Frame Materials: Lightweight H-shaped steel or square steel tubes, Q235/Q355 structural steel, galvanized purlins, coated galvanized steel sheets
Service Content: Design, manufacturing, packing, and installation documentation
Application Areas: Residential properties, housing projects, storage facilities, logistics warehouses, production plants
Quality Standards: ISO9001, CE, COC, PVOC
Order & Delivery: Tailor-made products with approximately 90-day project completion including installation acceptance
Core Advantages: Earthquake resistance level 7, Class II fire rating, Class II structural integrity
Product Description
Steel Frame Casas: Advanced Lightweight Steel Housing Solutions for Rapid Project Delivery

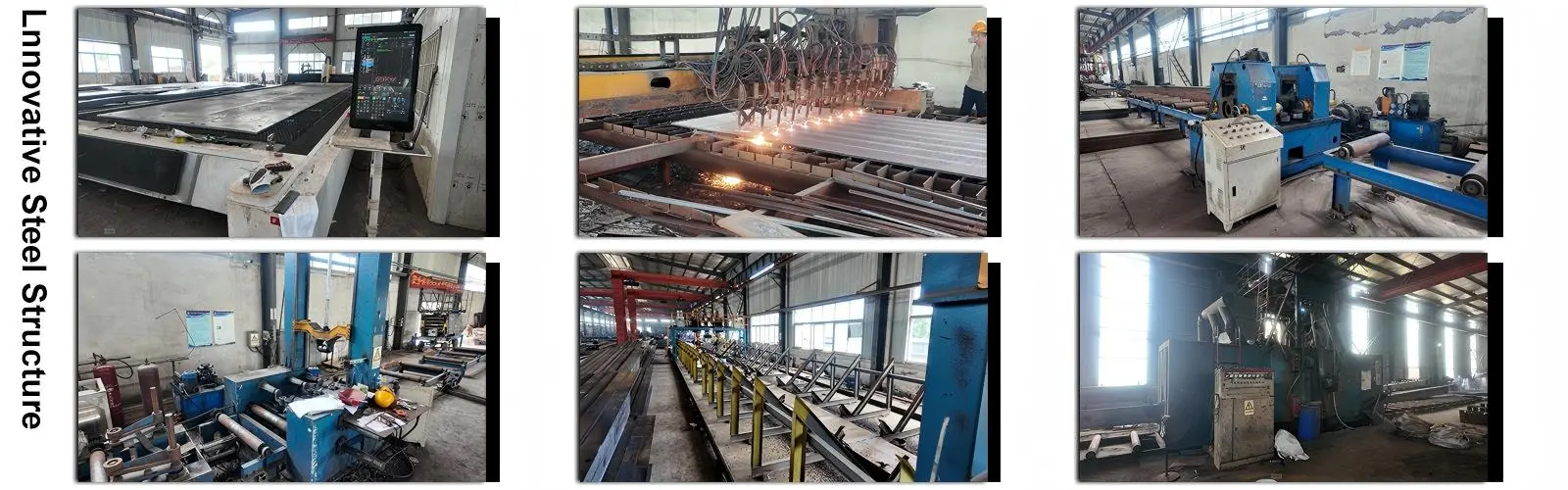

With a 50,000-square-meter production base and a 50,000-ton yearly steel structure capability, Luoyang Innovation Building Material Co., LTD specializes in providing high-performance Steel Frame Casas. Our Casas have a Class II fire rating and seismic resistance level 7 thanks to the use of superior Q235/Q355 structural steel with cutting-edge galvanized coatings. From order to construction acceptance, we guaranty project completion in about 90-95 days with integrated design, manufacture, and installation support. Each structure satisfies ISO9001, CE, and ASTM certifications, ensuring accuracy, robustness, and compliance in commercial, industrial, and residential settings across the globe.
Why Choose Steel Frame Casas for Your Next Building Project
Quickness, accuracy, and sustainability are essential in modern building. By substituting engineered lightweight steel components for conventional masonry, Steel Frame Casa provide all three. Prefabricated components made in controlled settings save you money on onsite labor and eliminate weather delays. In line with green building regulations, the dry construction process reduces water use and construction waste. Large-span designs with column-free interiors are available when you choose our solutions, making them ideal for adaptable layouts in residential complexes, storage facilities, or manufacturing facilities. Your return on investment is accelerated by the high strength-to-weight ratio, which lowers foundation costs by up to 40% when compared to concrete structures.
Technical Specifications and Performance Data
| Parameter | Details |
|---|---|
| Typical Project Size | 10,100.78 m² (customizable) |
| Standard Span | 63.3 m × 36.5 m × 25.3 m |
| Eave Height | 25.3 m (adjustable) |
| Frame Material | Q235/Q355 H-shaped steel, galvanized purlins |
| Wall & Roof Options | Single-layer coated steel or insulated sandwich panels |
| Coating Protection | Hot-dip galvanized (Z275) or aluzinc (AZ150) |
| Fire Resistance | Class II (60-120 minute FRR with approved cladding) |
| Seismic Performance | Level 7 earthquake resistance |
| Structural Integrity | Class II according to national standards |
| Lead Time | 90-95 days to construction acceptance |
| Certifications | ISO9001, CE, ASTM, COC, PVOC |
Comprehensive Service Scope from Design to Installation
We offer complete assistance to guaranty the success of your project. Our engineering team starts with structural design that is customized to your site's specifications and local regulations. Strict dimensional specifications are followed during factory manufacture, ensuring accurate assembly on-site. Anti-corrosion coatings are part of surface treatment to increase service life beyond 50 years. In order to reduce mistakes during construction, you receive comprehensive installation plans and expert advice. Everything from foundation guidance to final acceptance inspections is covered by our expert craftsmanship. Coordination issues between several vendors are eliminated by combining design, production, and construction services. Simplified accountability and communication under one roof is beneficial to your project.
Superior Material Properties and Structural Advantages
Steel Frame Casas perform better than conventional construction techniques in a number of areas. Excellent flexibility and toughness are provided by structural steel's consistent material qualities, which absorb seismic energy during earthquakes. Even in humid or coastal conditions, rust can be prevented for decades using galvanized or aluzinc coatings. Compared to brick construction, you can maximize usable floor area by 3%–8% by achieving greater clear spans without inner columns. Thru multi-layer assemblies, thinner wall profiles preserve outstanding thermal and acoustic insulation while expanding internal space. Since steel satisfies Class A1 requirements and is non-combustible, fire safety is intrinsic. Steel Frame Casa' lightweight design lowers foundation loads by 30% to 40%, which drastically lowers the cost of concrete and earthwork. By removing the unpredictability of manual production, prefabricated parts guaranty millimeter-level accuracy.
Diverse Applications Across Industries and Geographies
Steel Frame Casa adds flexibility to your project and may be used in a variety of ways. They are used by residential developers for high-density urban development, speeding up occupancy schedules and cutting building timetables by 30% to 50%. Lightweight logistics are advantageous for remote eco-resorts since parts may be transported to islands or hilly locations with little disruption to the foundation. Industrial clients use these structures for production facilities, logistics hubs, and warehouses, utilizing the expansive column-free areas for equipment and workflow optimization. Because the system weighs 60%–70% less than masonry, it eliminates the need for costly base strengthening, making vertical additions on existing buildings possible. Applications that prioritize quick deployment and relocation can also be found in agricultural storage, modular housing projects, and temporary facilities.
Environmental and Economic Benefits for Long-Term Value
Selecting Steel Frame Casa helps your bottom line and sustainability objectives. By doing away with wet trades, dry construction techniques cut jobsite waste and water use by more than 80%. Steel is 100% recyclable and complies with circular economy and ESG regulations. Advanced insulation solutions increase energy efficiency and reduce heating and cooling expenses throughout the course of a building's lifetime. For commercial projects, the quick building duration allows for earlier revenue generation and lowers finance expenses. Because of the steady structural performance and long-lasting coatings, maintenance needs are kept to a minimum. With a design life of more than 50 years, you can avoid expensive repairs that are frequently necessary for wood or masonry buildings that are subject to dampness, pests, or seismic activity. A remarkable return on investment is produced by the combination of cheaper starting costs, quicker completion, and lower operating expenses.

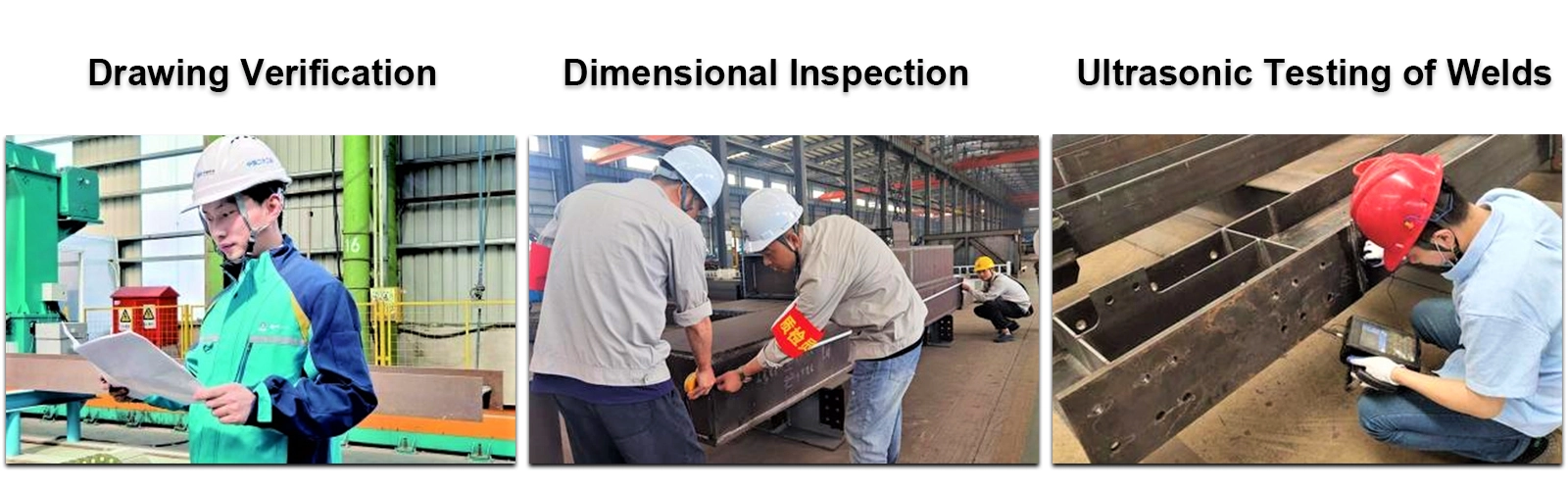

Rigorous Quality Control and Compliance Standards
Strict quality checks are performed on each Steel Frame Casa project to guaranty longevity and safety. CNC precision cutting and welding are validated at every level of factory production, which adheres to ISO9001 regulations. Tests for coating thickness verify that Z275 galvanization or AZ150 aluminum meet corrosion resistance requirements. To ensure flawless onsite alignment, dimensional tolerances stay within ±0.5mm. Using specialist instruments, fastener torque and connection integrity are examined in accordance with AISI and Eurocode specifications. While thermal bridging checks guaranty energy performance, load testing verifies seismic and wind resistance. Independent verification is offered by third-party certifications like CE and ASTM. From material certificates to final acceptance reports, you obtain complete documentation traceability, guaranteeing responsibility and transparency throughout the project lifetime.
Frequently Asked Questions About Steel Frame Casa
Q: How long do Steel Frame Casa last?
A: With proper galvanized or aluzinc coatings, the steel components remain protected for over 50 years, even in challenging environments. Regular inspections and minimal maintenance extend service life further.
Q: Can these structures withstand extreme weather?
A: Yes, our designs meet level 7 earthquake resistance and high wind load standards. The flexibility and strength of steel absorb and dissipate energy better than rigid masonry.
Q: Are Steel Frame Casa more expensive than traditional construction?
A: Initial material costs may be similar, but you save significantly on labor, foundation work, and project financing due to faster completion. Total lifecycle costs are lower thanks to reduced maintenance and energy efficiency.
Q: Do steel structures interfere with mobile or Wi-Fi signals?
A: No, the spacing of steel studs allows radio frequencies to pass freely. Signal interference is not an issue in residential or commercial settings.
Q: Can I customize the design and finishes?
A: Absolutely. Our engineering team tailors structural dimensions, roof slopes, wall cladding, and interior layouts to your specific requirements. Architectural flexibility is a key advantage.
Q: What about fire safety?
A: Steel is non-combustible, and when paired with fire-rated gypsum or cementitious boards, our systems achieve 60-120 minute fire resistance ratings, exceeding most building code requirements.
Contact Us for Your Steel Frame Casa Project
Ready to experience faster construction, lower costs, and superior performance? Our team is here to support your next Steel Frame Casas, commercial, or industrial project. contact us at eric@cxsteelstructure.com for customized design proposals, technical specifications, and project timelines tailored to your needs.
