Their steel structures are exceptionally strong and precisely manufactured. The entire production process was highly professional.
Casa De Steel Frame
Structure Type: Industrial large-span steel building with portal frame system
Origin: China
Materials Used: Q235/Q355 steel framework, lightweight H-beams or square tubes, galvanized purlins, pre-coated galvanized steel sheets
Available Services: Design, fabrication, packing, and installation drawings
Recommended Applications: Residential projects, housing units, storage facilities, logistics warehouses, industrial processing plants
Compliance: ISO9001, CE, COC, PVOC certified
Manufacturing Cycle: Custom-built with approximately 90 days covering production, installation, and project acceptance
Advantages: Seismic resistance level 7, Class II fire protection, Class II structural safety
Product Description
Casa De Steel Frame Systems for Modern Construction: High-Performance Residential and Industrial Building Solutions

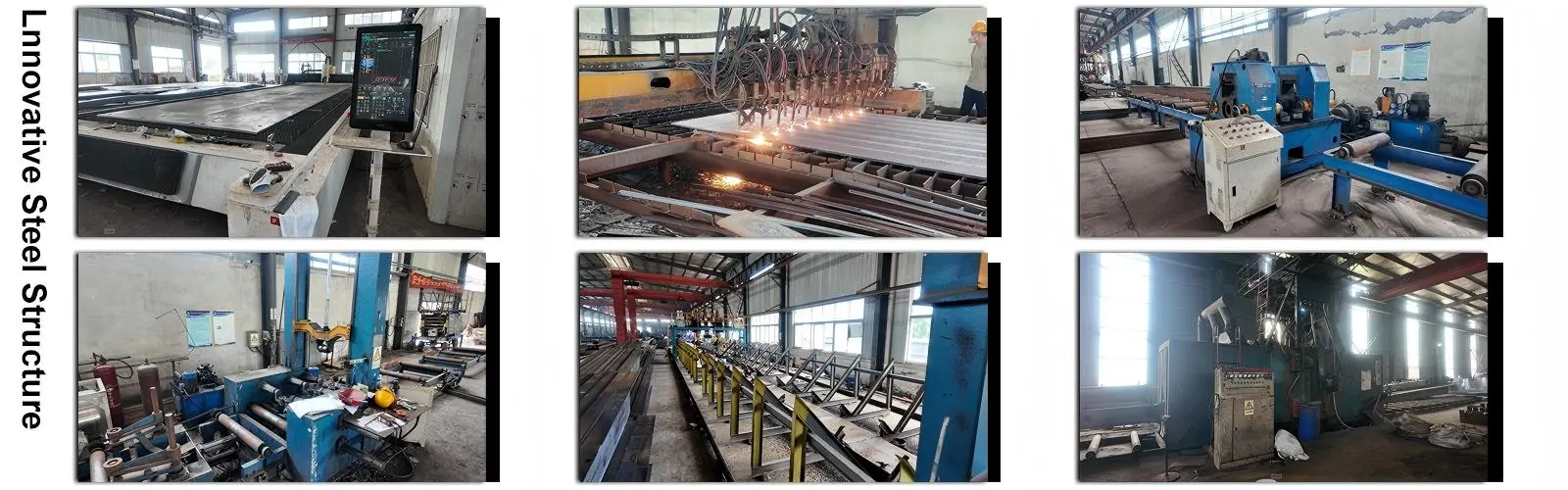

Luoyang Innovation Building Material Co., LTD specializes in advanced Casa De Steel Frame construction systems, combining precision engineering with large-scale manufacturing capabilities. Operating from a 50,000-square-meter production facility, we deliver over 2 million square meters of building materials annually, including steel structure components with a production capacity of 50,000 tons per year. Our intelligent steel processing lines ensure dimensional accuracy and quality consistency across all projects. With certifications including ISO9001, CE, COC, and PVOC, our systems achieve seismic resistance level 7 and Class II fire protection standards.
What Makes Casa De Steel Frame Construction Superior
This cutting-edge construction technique builds sturdy structural skeletons for both residential and commercial applications using cold-formed galvanized steel profiles, usually C and U sections. Steel Frame systems function as dry building techniques, which eliminate moisture-related problems and reduce material waste by up to 70%, in contrast to traditional masonry.
The framework is made of Q235/Q355 steel grades with galvanized or aluminum-zinc coatings. These coatings provide corrosion resistance for over a century in most situations. The typical thicknesses and yield strengths for residential applications are 0.8 to 1.2 mm and 300 to 550 MPa, respectively.
Eighty percent of building takes place in controlled surroundings thanks to factory prefabrication. Long building timetables, dimensional irregularities, and excessive on-site waste generation are some of the major industrial issues that this method resolves.
Technical Specifications and Performance Parameters
| Parameter | Specification |
|---|---|
| Structure Type | Portal frame system with lightweight H-beams |
| Steel Grade | Q235/Q355 |
| Coating | Z275 galvanized or AZ150 aluminum-zinc alloy |
| Material Thickness | 0.75mm – 1.6mm (load-dependent) |
| Span Capability | Up to 63.3m column-free spaces |
| Eave Height | Customizable (reference: 25.3m) |
| Seismic Rating | Level 7 resistance |
| Fire Protection | Class II non-combustible rating |
| Corrosion Resistance | 100+ year service life |
| Manufacturing Lead Time | 90-95 days (production to acceptance) |
Core Performance Advantages
Structural Efficiency and Safety
The superior strength-to-weight ratio reduces foundation requirements by approximately 30% compared to concrete structures. Steel's uniform material properties deliver excellent plasticity and toughness. This makes Casa De Steel Frame systems ideal for seismic zones and high-wind areas.
Components manufactured through CNC precision ensure consistent dimensional accuracy. Factory quality control eliminates common field construction errors. The result is predictable structural performance meeting AISI S100, AS/NZS 4600, and ASTM A1003 standards.
Accelerated Project Delivery
Prefabricated components arrive ready for assembly. Bolted and welded connections eliminate curing time requirements. Construction cycles are 30-50% shorter than traditional methods.
This rapid deployment helps owners begin operations earlier. Faster occupancy accelerates return on investment. The system operates effectively regardless of weather conditions or seasonal limitations.
Environmental Sustainability
Steel may be recycled indefinitely without losing its quality. Dust, noise, and building debris are reduced by using dry construction techniques. This strategy is consistent with green building certifications and current ESG criteria.
Project carbon footprints are decreased by reduced transportation loads. Circular economy concepts are supported by little trash generated on-site.
Application Scenarios
Industrial and Commercial Facilities
These systems' large-span capabilities make them perfect for manufacturing facilities, warehouses, and logistics hubs. Interior spaces without columns offer the greatest flexibility for future changes and equipment layouts. Standardized component systems are advantageous for projects with footprints ranging from 10,000 square meters to significantly larger ones.
Residential Construction Projects
Multi-story housing developments utilize the lightweight characteristics to add floors on existing foundations. Superior thermal and acoustic performance is achieved through multi-layered wall assemblies incorporating rock wool insulation and gypsum board finishes.
Specialized Environments
Coastal projects benefit from enhanced AZ150 coatings that withstand salt-spray corrosion. Remote locations appreciate the ease of transporting lightweight components without requiring heavy machinery. The system's adaptability suits diverse geographical and climatic conditions.
Complete Service Integration
Our comprehensive approach covers the entire project lifecycle. Design services include structural calculations and wind/seismic load analysis. Manufacturing utilizes automated production lines ensuring component precision. Surface treatments apply protective coatings meeting your environmental conditions.
Packaging protects materials during transit. Installation drawings provide clear assembly guidance. On-site technical support ensures proper implementation of design specifications.
FAQ
Q: How long does a steel frame building typically last?
A: These buildings have a service life of more than 50 years when properly maintained. Under typical circumstances, the galvanized coating offers corrosion protection for more than a century. Unlike wood substitutes, steel does not decay, distort, or sustain termite damage.
Q: What is the performance of steel frame structure during an earthquake?
A: The lightweight nature and flexible connections allow structures to absorb seismic energy effectively. Level 7 earthquake resistance requirements are met by our systems. Because of its ductility, steel avoids the catastrophic failure modes that are typical of brittle materials.
Q: Is it possible to modify designs to meet particular needs?
A: Definitely. Based on your span needs, load circumstances, and esthetic choices, we offer customized solutions. In order to satisfy special project requirements while preserving structural integrity, our engineering team modifies standard systems.
Q: What insulation options are available?
A: variety of insulation materials, such as fiberglass, spray foam, and rock wool, are accommodated in wall and roof components. R-values surpassing local construction codes are achieved by typical setups. Strategic component design reduces thermal bridging.
Q: Is financing or technical training available?
A: We focus on manufacturing and technical support. For project-specific financial arrangements or installer training programs, please discuss your requirements directly with our team.
Start Your Next Project
Ready to experience the advantages of modern Casa De Steel Frame construction? Our engineering team stands ready to discuss your specific requirements and provide customized solutions.
contact us today at eric@cxsteelstructure.com to receive detailed project consultation and competitive quotations.
