Steel-Structure Pedestrian Overpass

Steel-Structure Pedestrian Overpass: High-Performance Urban Crossing Solution for Modern Infrastructure

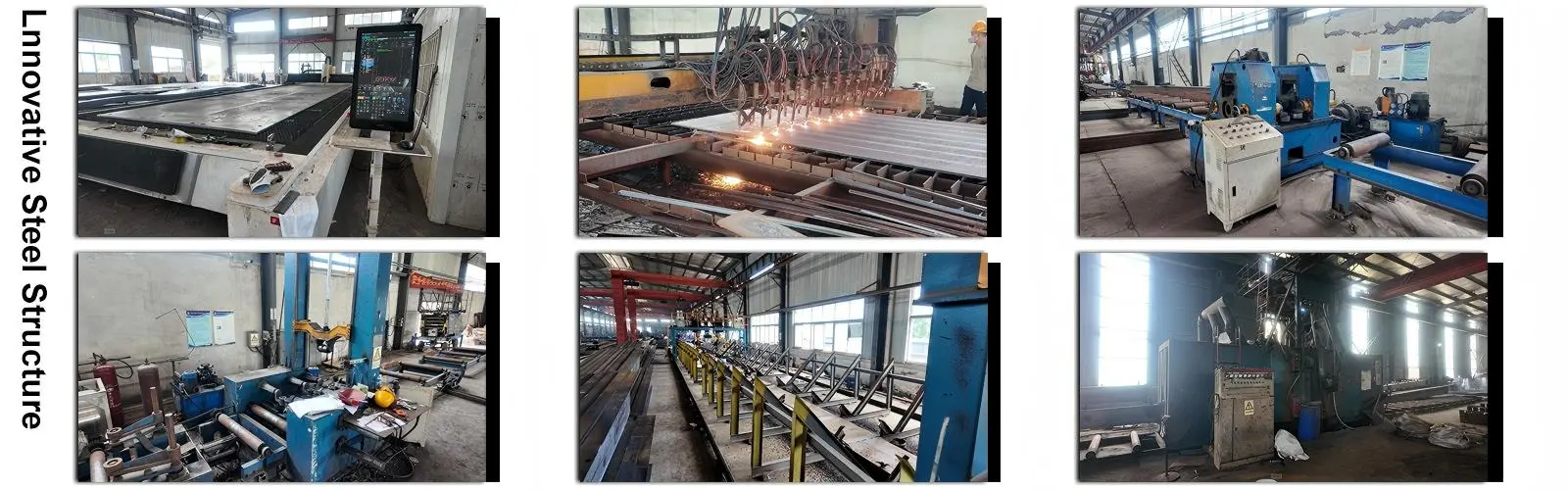

Premium Steel-Structure Pedestrian Overpass systems designed for quick urban deployment and long-term dependability are supplied by Luoyang Innovation Building Material Co., LTD. We offer full turnkey solutions from design to installation, supported by our 50,000-square-meter intelligent production facility with an annual steel construction capacity of 50,000 tons. Using premium Q355B and Q460 structural steel, our pedestrian bridges may span more than 60 meters while taking up very little space on the ground. Our ISO9001-certified quality system and skilled technical team benefit every project, guaranteeing delivery cycles that are 30%–50% quicker than traditional concrete alternatives while adhering to stringent international safety and durability standards.

What Makes Steel-Structure Pedestrian Overpasses the Optimal Choice?

An elevated crossing system constructed from high-strength structural steel elements is known as a Pedestrian Overpass. These designed solutions offer safe pedestrian paths over dangerous intersections, railroads, and highways using box girders, truss assemblies, or arched frames.

Steel's remarkable strength-to-weight ratio is its main benefit. This lessens disruption at ground level by enabling greater spans with fewer support columns.

Construction schedules are altered by off-site prefabrication. After being produced in controlled manufacturing settings, components are quickly assembled on-site during periods of little traffic disruption.

Immediate advantages for your project include lower building costs, quicker project completion, and less damage to the current urban infrastructure. Steel constructions' light weight also greatly reduces the need for a foundation, which is especially important when dealing with subterranean utilities or bad soil.

Technical Specifications

Superior Seismic Performance and Material Properties

During earthquake occurrences, steel's natural ductility offers remarkable energy absorption. When compared to brittle concrete substitutes, the material's consistent qualities and strong tensile strength provide higher earthquake resilience.

A modulus of elasticity of about 210 GPa is advantageous to your structure. This preserves structural integrity while ensuring regulated deflection under dynamic loads.

Complex curved patterns that are not conceivable with conventional materials are made possible by advanced geometric capabilities. Strict engineering specifications can be met while producing visually arresting bridges that improve urban environments.

Novel architectural expressions are made possible by the yield strength features. Steel can suit your design vision without sacrificing safety standards, whether it is thru sweeping arches or contemporary linear spans.

Strategic Application Scenarios

Urban arterial crossings demand rapid installation to minimize economic disruption. Our modular Steel-Structure Pedestrian Overpass systems install during 4-6 hour overnight windows, keeping traffic flowing during business hours.

Transit-oriented developments require lightweight solutions. When connecting metro stations to commercial centers, steel structures avoid overloading existing underground infrastructure while providing elegant connectivity.

Industrial and coastal environments present unique challenges. We deploy specialized weathering steel or heavy-duty duplex coating systems for high-salinity zones where concrete structures suffer premature deterioration.

Your project location determines the optimal configuration. We customize corrosion protection, structural reinforcement, and surface treatments to match specific environmental demands.

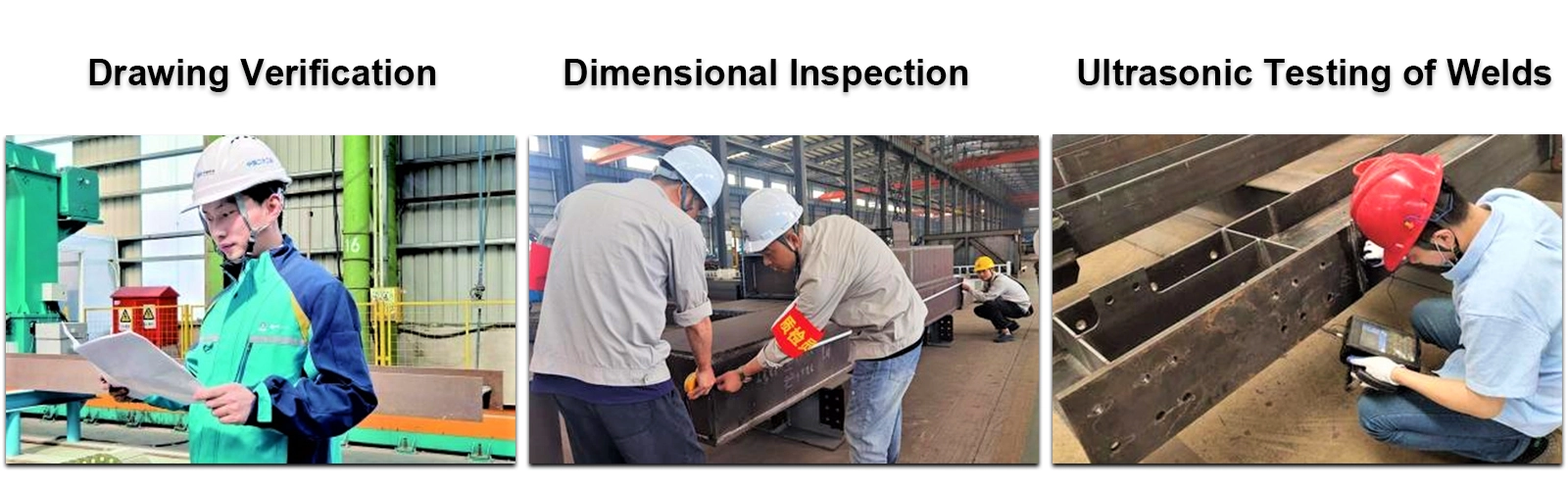

Comprehensive Quality Assurance Framework

Material integrity verification starts at the mill. Every steel batch undergoes chemical composition analysis and mechanical property testing before entering our production line.

Weld quality receives 100% scrutiny. Our technicians perform Ultrasonic Testing (UT) or Radiographic Testing (RT) on all critical joints per AWS D1.1 and EN 1090 standards.

Surface protection follows ISO 12944 protocols. We measure Dry Film Thickness (DFT) using calibrated magnetic gauges to guarantee minimum coating requirements for 25-year maintenance-free performance.

Pre-assembly verification eliminates onsite surprises. Factory trial assembly confirms perfect bolt-hole alignment before components leave our facility, ensuring smooth field installation.

Dimensional tolerance checks ensure structural alignment. We measure camber and sweep under controlled conditions to guarantee your bridge performs exactly as engineered.

Rapid Installation and Economic Advantages

Prefabricated components arrive ready for assembly. Your construction timeline shrinks by 30%-50% compared to cast-in-place concrete methods, accelerating project ROI.

Dry construction methods eliminate curing delays. Bolted connections allow immediate load application once assembly completes, getting your crossing operational faster.

Reduced foundation costs deliver immediate savings. Steel's lightweight nature—30%-40% lighter than reinforced concrete—minimizes ground treatment requirements and pile depth.

Space utilization increases your project value. Thinner structural members compared to concrete equivalents boost usable crossing width by 3%-8% within the same footprint.

Long-term maintenance costs stay minimal. Our corrosion protection systems reduce lifecycle expenses while steel's inherent durability ensures decades of reliable service.

Environmental Sustainability and Circular Economy

Steel's 100% recyclability aligns with modern green building requirements. Your project contributes to LEED certification goals and corporate ESG commitments.

Construction waste drops dramatically. Precise factory fabrication generates minimal scrap compared to onsite concrete forming and pouring operations.

Carbon footprint reduction benefits appear across the lifecycle. From manufacturing efficiency to end-of-life material recovery, steel structures support environmental responsibility.

Dust and noise pollution decrease significantly. Dry assembly methods create cleaner, quieter construction sites that minimize community disruption during installation.

FAQ

Q: How do you control pedestrian-induced vibrations?

A: We incorporate Tuned Mass Dampers (TMD) and conduct thorough dynamic analysis. Our designs maintain natural frequencies outside the 1.6Hz to 2.4Hz range, preventing uncomfortable resonance for users.

Q: What service life can I expect from a steel pedestrian bridge?

A: With modern hot-dip galvanizing and professional multi-layer coating systems, you'll achieve 50 to 100 years of reliable service under normal conditions.

Q: How quickly can installation be completed?

A: While fabrication typically requires several weeks, actual onsite assembly for standard spans often completes in just 1 to 3 overnight sessions, minimizing traffic disruption.

Q: Are steel overpasses noisier than concrete alternatives?

A: No. We apply specialized polymer-modified asphalt or composite deck surfacing that effectively dampens acoustic resonance from footfalls, creating quiet crossing experiences.

Q: Can the structure support emergency vehicles if needed?

A: Absolutely. Through our "Light Vehicle" design variants, we reinforce the Pedestrian Overpass to accommodate ambulances or maintenance vehicles when your project requires this capability.

Partner With Proven Expertise

Luoyang Innovation Building Material Co., LTD brings 2 million square meters of annual building material production experience to your project. Our intelligent Steel-Structure Pedestrian Overpass processing line and professional engineering team deliver customized solutions that match your specific site requirements, budget constraints, and aesthetic goals.

Contact our technical specialists at eric@cxsteelstructure.com to discuss your pedestrian overpass project requirements and receive a detailed proposal tailored to your infrastructure needs.
