Steel Structure Stage: High-Performance Modular Platform Solutions

Luoyang Innovation Building Material Co., LTD specializes in manufacturing advanced Steel Structure Stage systems through an integrated design-to-installation approach. Our 50,000-square-meter intelligent production facility can produce 50,000 tons of steel structures annually, producing precisely constructed platforms that can withstand static loads of more than 750 kg/m². Our stages have a service life of more than 20 years, even in corrosive coastal conditions, because they are made from Q235B and Q355B structural steel grades with a hot-dip galvanization thickness of 85 microns. For dynamic load applications, each unit has deflection control within the L/400 ratio, guaranteeing optimal stability.

certificate

What Is Steel Structure Stage?

A high-performance load-bearing platform designed with structural steel frameworks is called a Stage. These systems offer the considerable stiffness needed for heavy-duty applications, in contrast to conventional wooden or aluminum substitutes.

The platform resolves important industry issues like instability in high-wind areas and structural deformation under dynamic loads. Safety is non-negotiable in modular systems created by precisely engineered beams, trusses, and columns.

These platforms are built on steel grades like Q235B or Q355B. The design offers dimensional stability in a variety of climatic settings while removing the high maintenance expenses related to perishable materials.

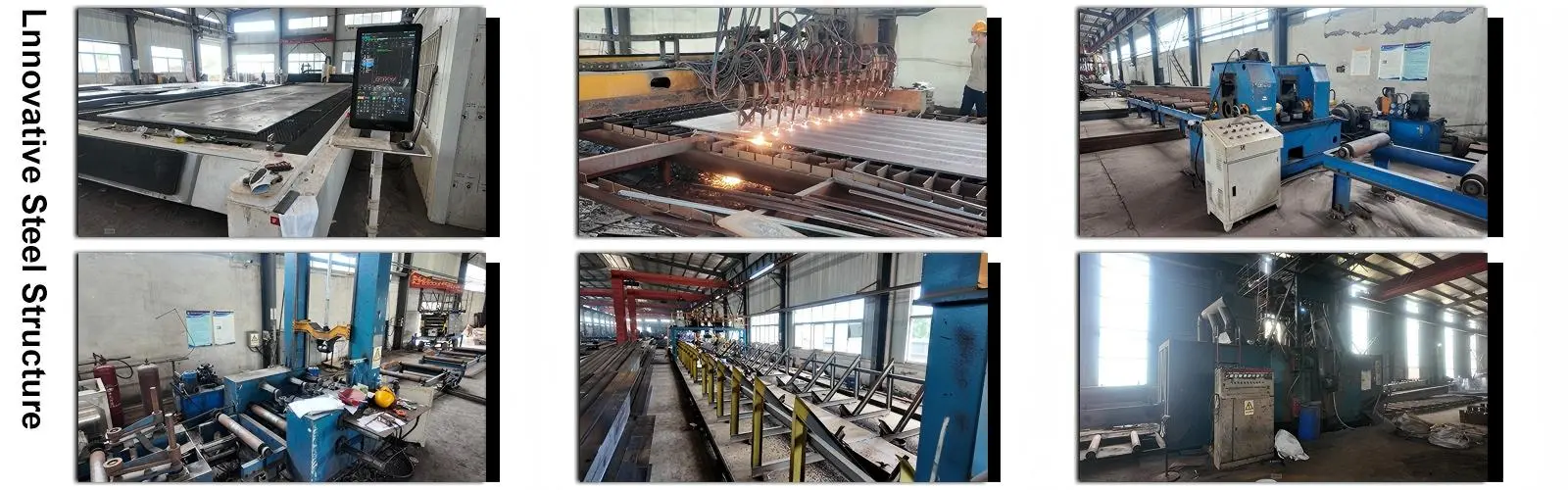

factory

Technical Specifications

Our Steel Structure Stage systems deliver measurable performance through precision manufacturing:

Parameter	Specification
Structural Type	Lightweight H-beam or square tubular steel frame
Primary Steel Grades	Q235B, Q355B (ASTM A36 equivalent)
Yield Strength	235-345 MPa
Load Capacity	500-1500 kg/m² (depending on span)
Deflection Control	L/400 maximum ratio
Secondary System	Galvanized C/Z purlins with tie rods
Anti-Corrosion Treatment	Hot-dip galvanization (85 microns)
Fire Resistance	Class A non-combustible
Service Life	20+ years
Production Tolerance	±2mm dimensional accuracy

Core Performance Advantages

Better Structural Integrity and Load-Bearing Capability

While supporting excessive point loads, high-strength steel reduces weight by 30–40% when compared to reinforced concrete. All structural components operate consistently thanks to the material's homogeneous characteristics.

Joint strength is ensured by factory-controlled welding procedures that adhere to AWS D1.1 requirements. Critical connection integrity is confirmed by non-destructive testing, such as magnetic particle inspection and ultrasonic testing.

Quick Installation and Economical

For 500m² installations, prefabricated parts allow for on-site assembly in three to five days. When compared to conventional procedures, this strategy shortens building schedules by thirty to fifty percent.

Because lightweight design reduces the need for a foundation, ground treatment costs are greatly reduced. Bolted connections speed up project completion and return on investment by removing the need for drying time.

Outstanding Resilience in Difficult Conditions

A metallurgical link formed by hot-dip galvanization keeps oxidation at bay for decades. In corrosion categories C3–C5, high-build epoxy coatings offer extra protection.

From -40°C to +70°C, the material retains its structural qualities. These platforms are perfect for coastal installations without sacrificing performance because they are resistant to salt spray.

Adaptable Design and Optimization of Space

Open, flexible areas are produced by spans up to 30 meters without columns. Precision customisation for circular, cantilevered, or multi-level layouts is made possible by CNC plasma cutting.

When compared to concrete alternatives, thinner structural profiles result in a 3–8% increase in usable area. Future extension or reconfiguration is supported by modular design without requiring significant structural changes.

Primary Application Scenarios

Large-Scale Event and Performance Venues

Outdoor touring stages withstand dynamic vibration and lateral wind forces up to 10 Beaufort scale. The structural steel framework integrates with complex hydraulic lifts and theatrical machinery seamlessly.

Permanent performing arts centers benefit from dimensional stability that prevents warping in high-humidity environments. The platform provides reliable foundations for sophisticated lighting and sound equipment.

Industrial Exhibition and Commercial Spaces

Heavy-duty mezzanine applications showcase machinery and automotive assets requiring extreme point-load resistance. The open-span design facilitates flexible booth layouts and equipment positioning.

Vehicle parking structures and equipment storage facilities utilize the system's rapid deployment advantages. Maintenance sheds and covered work areas gain weather protection without permanent foundation investment.

Specialized Infrastructure Projects

Temporary construction platforms provide safe elevated work surfaces for industrial maintenance. The modular components relocate easily between project sites, maximizing asset utilization.

Cleanroom facilities and controlled environments benefit from the system's minimal particle generation. The steel framework supports advanced HVAC integration and specialized equipment mounting.

Quality Assurance and Manufacturing Excellence

Our 50,000-square-meter production base employs internationally advanced intelligent equipment for precision fabrication. Annual output exceeding 2 million square meters of building materials ensures reliable supply chains for large-scale projects.

Multi-stage inspection protocols include factory production control audits with pre-assembly fit-up testing. Static load verification at 1.5 times rated capacity validates safety factors before shipment.

ISO9001 certification demonstrates systematic quality management across all production stages. CE marking confirms EN 1090 compliance for structural steel construction standards.

Coating thickness verification uses electromagnetic induction to guarantee specified protection levels. Dimensional accuracy maintained within ±2mm tolerances ensures seamless on-site assembly.

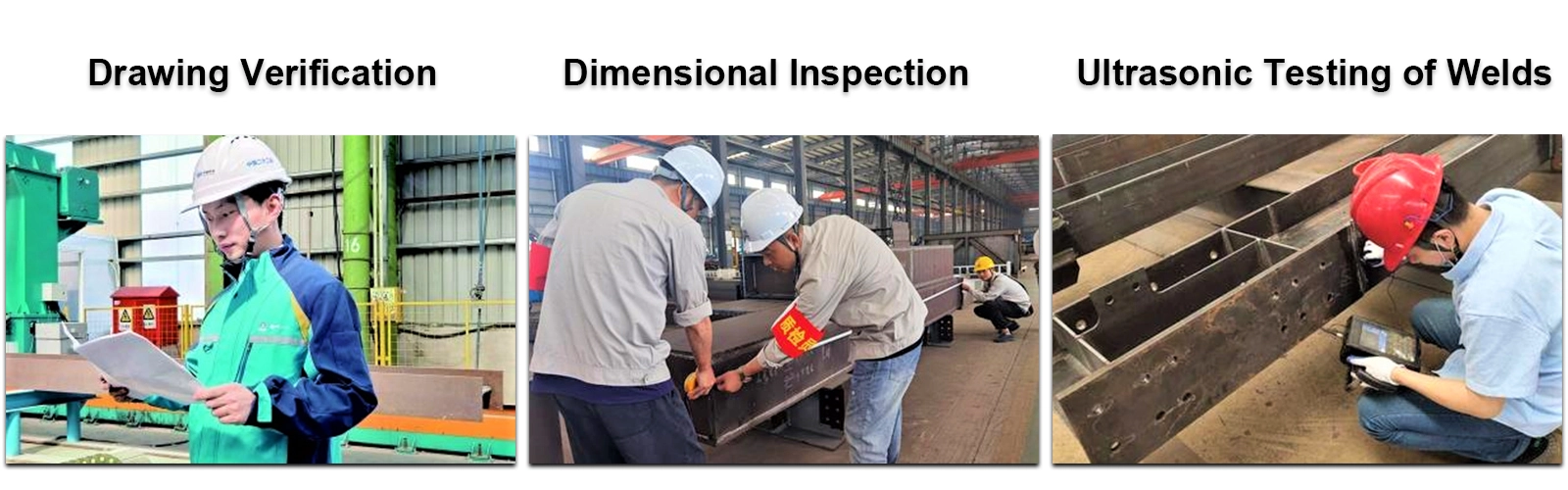

quality testing

Frequently Asked Questions

Q: What maximum load capacity does your standard stage support?

A: Depending on span and beam configuration, our platforms typically handle 500kg to 1500kg per square meter. Custom engineering accommodates specialized heavy-load requirements.

Q: How does the stage perform in coastal salt-spray environments?

A: Hot-dip galvanization with 85-micron thickness provides high salt-spray resistance. This treatment prevents oxidation for decades in marine conditions.

Q: Can you customize stages for irregular architectural shapes?

A: Yes, CNC plasma cutting enables precision customization. We accommodate circular, cantilevered, and multi-level designs through modular component adaptation.

Q: Does the stage meet fire safety code requirements?

A: Steel's inherent non-combustible properties achieve Class A rating. Intumescent coatings extend fire resistance ratings up to 120 minutes when specified.

Q: What installation timeline should we expect for a 500m² project?

A: Professional crews typically complete primary structure installation in 3-5 days. Prefabricated components enable significantly faster deployment than concrete alternatives.

Partner With Industry Experts

Ready to implement a reliable Steel Structure Stage solution for your project? Our engineering team provides customized designs backed by 50,000-ton annual production capacity. Contact eric@cxsteelstructure.com for technical specifications and project consultation today.
