Steel Structure Frame Parking Canopy

Premium Steel Structure Frame Parking Canopy Solutions for Durable Vehicle Protection

Enterprise-grade Steel Structure Frame Parking Canopy systems are produced in a 50,000-square-meter production plant with a 50,000-ton annual steel processing capacity by Luoyang Innovation Building Material Co., LTD. Our clever production process uses Q235B/Q345B grade steel, which has a yield strength between 235 and 345 MPa, to create prefabricated parking canopy structures with exceptional load-bearing capabilities. Each system has square tubular steel frames or hot-dip galvanized H-beams with galvanized C/Z-type purlins, which provide corrosion protection for more than 30 years in C3–C4 conditions. When compared to conventional methods, our full service chain—which includes structural design, CNC precision fabrication, export packaging, and installation documentation—reduces on-site building time by up to 40%.

What Makes Our Steel Structure Frame Parking Canopy Different

Conventional aluminum carports and tension membrane structures may collapse due to heavy snow loads or hurricane-force winds. Our developed solution uses heavy-duty structural steel components that are made to surpass local construction requirements in order to overcome these serious flaws.

I-beam or square hollow section steel is used in the core framework to create a stiff skeleton that can withstand winds of up to 180 km/h and ground snow loads of more than 1.5 kN/m². Because of this, our solution is perfect for high-salinity coastal areas and alpine areas where conventional structures fail.

Our Parking Canopy offers column-free spans greater than 10 meters, in contrast to light-gauge alternatives. For commercial fleets and logistical facilities, this optimizes parking density and maneuvering space. The hollow steel sections have two functions: they protect the wiring of EV charging stations while preserving structural integrity.

Technical Specifications and Performance Parameters

Rapid Installation and Cost-Effective Construction

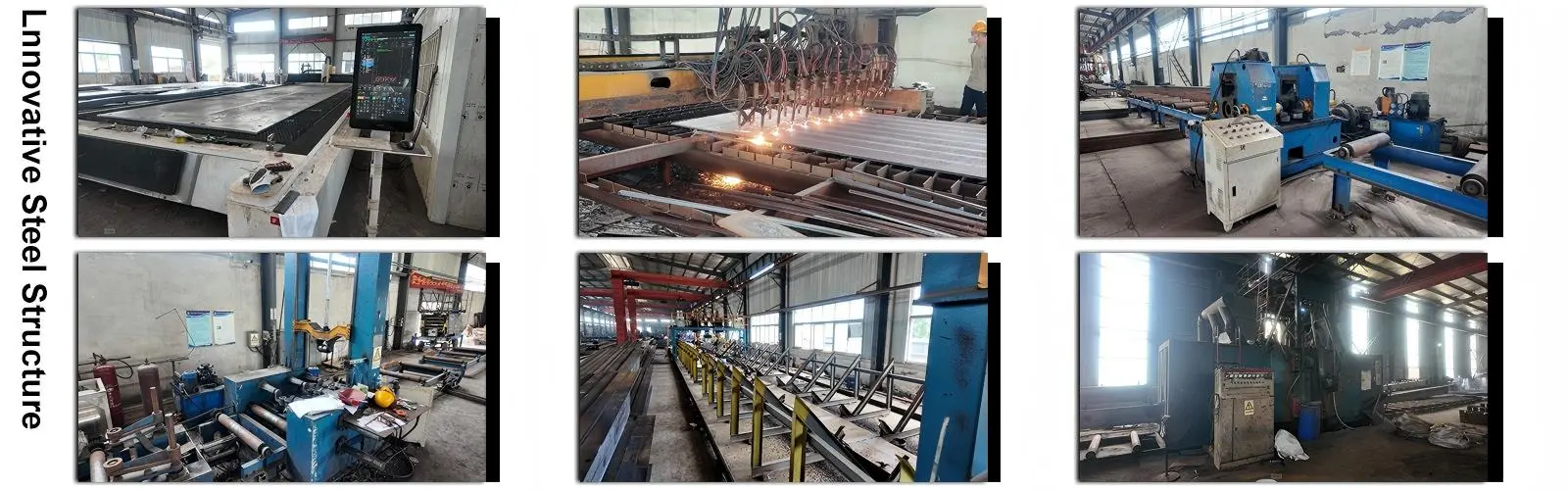

You will notice how our prefabricated method changes project schedules. In our climate-controlled manufacturing, each component is subjected to CNC cutting, drilling, and welding. This eliminates on-site adjustment delays by guaranteeing dimensional tolerances within ±2mm.

We avoid weather-related impediments for your project since we employ dry building techniques. Installation crews can finish erection 30–50% faster with bolt assembly techniques than with concrete alternatives. This allows for early facility operation, which speeds up your return on investment.

Steel is 30–40% lighter than reinforced concrete, which drastically lowers the need for a foundation. You will get better structural performance and save money on ground treatment. Every design is optimized by our technical staff to strike a balance between load-bearing capability and material efficiency.

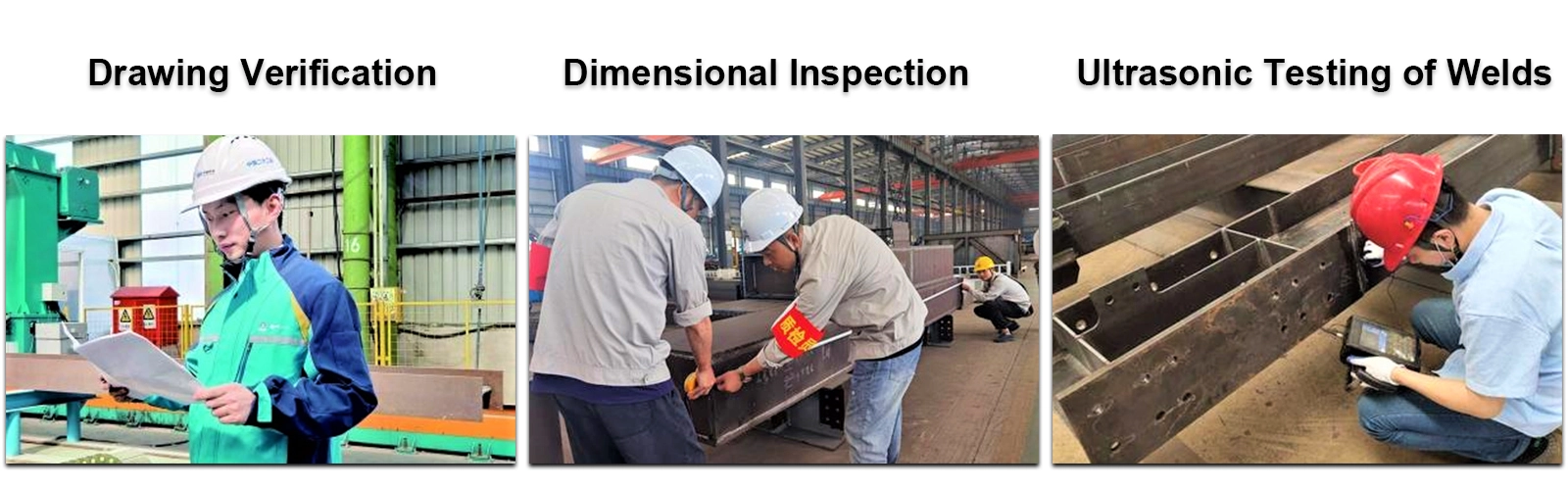

Quality Assurance Through Multi-Stage Inspection

Verification of raw materials is the first step in our quality control procedure. Mill Test Certificates verifying chemical composition and tensile strength compliance are included with each batch of steel. Throughout the course of your project, traceability is guarantyd by this documentation trail.

Non-destructive testing techniques pay particular attention to welding integrity. Magnetic particle inspection and ultrasonic testing look for internal defects in load-bearing joints that are not visible to the human eye. We confirm that all essential connections adhere to Eurocode 3 or AISC standards.

Lifespan is directly impacted by the quality of surface treatment. To ensure consistent protection, our professionals test the dry film thickness of every coated surface. Before shipping, cross-cut adhesion tests in accordance with ISO 2409 verify the strength of the coating bond.

To confirm load transmission efficiency, pull-out testing is done on foundation anchor reliability. This ensures that your structure stays stable under maximum design loads and avoids future settlement problems.

Versatile Applications Across Demanding Environments

Integrated solar PV arrays are becoming more and more necessary for commercial retail hubs. Your Steel Structure Frame Parking Canopy offers the stiff platform required to sustain wind uplift pressures and dead loads from solar panels. Mounting hardware is accepted by the structural steel without sacrificing weather protection.

High-clearance designs that support tall machinery and fleet vehicles are advantageous for heavy-duty logistics centers. Our technologies shield assets against UV deterioration and hail damage, which are serious issues for businesses in charge of costly equipment fleets.

Salt spray accelerates corrosion in coastal installations. We extend maintenance intervals beyond 25 years by applying specialized epoxy-rich coatings rated for C5-M marine conditions. In order to avert catastrophic collapse, alpine facilities undergo engineered snow load estimations that take regional accumulation trends into consideration.

Environmental Sustainability and Circular Economy Benefits

The 100% recyclable nature of steel complies with current ESG regulations. The entire building can be dismantled and put to new uses when your facility is finally renovated. When opposed to concrete demolition, this produces nearly little construction waste.

Our dry construction techniques reduce soil disturbance, noise pollution, and dust on the job site. During installation, you will have an easier time meeting environmental compliance requirements and preserving good community relations.

The long service life lessens the environmental impact of the lifecycle. Your Parking Canopy will last for many generations of cars with the right upkeep, saving resources by preventing frequent replacements.

Frequently Asked Questions

Q: What is the expected lifespan of a Parking Canopy?

A: With hot-dip galvanization and proper coating, the structural lifespan exceeds 50 years. The first maintenance interval typically occurs after 20-25 years, involving coating inspection rather than structural repairs.

Q: Can the structure withstand hurricane-force winds?

A: Yes, each system undergoes site-specific engineering to meet local building codes such as ASCE 7. Our designs are commonly rated for wind speeds reaching 150-180 km/h, verified through computational fluid dynamics analysis.

Q: Is the canopy compatible with EV charging stations?

A: Absolutely. The hollow sections of the steel frame function as protected conduits for electrical wiring. Columns provide stable mounting points for charging hardware without requiring additional support structures.

Q: How does the cost compare to aluminum carports?

A: While initial material investment is higher, you'll realize lower Total Cost of Ownership through durability, minimal repair needs, and larger achievable spans. The structure requires virtually no maintenance for the first two decades.

Q: Are these structures pre-fabricated?

A: Yes, all components receive CNC cutting, drilling, and welding in our controlled factory environment. This precision manufacturing reduces on-site installation time by up to 40% while ensuring consistent quality.

Contact Us for Custom Solutions

Our engineering team is ready to develop a tailored Steel Structure Frame Parking Canopy design for your specific site conditions and operational requirements. Reach out to eric@cxsteelstructure.com with your project details to receive detailed technical proposals and competitive quotations.
