Rock Wool Sandwich Panels

High-Performance Rock Wool Sandwich Panels for Industrial and Commercial Construction

Rock Wool sandwich panels that combine outstanding fire resistance with great thermal and acoustic performance are the specialty of Luoyang Innovation Building Material Co., LTD. Every year, our company distributes more than two million square meters of building materials from a 50,000-square-meter production facility. These composite panels have pre-painted galvanized or stainless steel facings that are 0.17 to 0.6 mm thick and a mineral wool core that ranges in density from 60 to 180 kg/m³. Our panels, which have Grade A1 fireproof certification and adjustable dimensions, are used in commercial buildings, cleanrooms, and industrial facilities that demand energy efficiency and stringent safety compliance.

What Makes Rock Wool Sandwich Panels Essential for Modern Construction

Volcanic fiber structures, which spin molten rock at a high speed to produce long-lasting mineral fibers, are the source of rock wool technology. Three important building problems are resolved by these panels. When organic foam cores fail, they first comply with strict fire safety criteria. Second, by providing thermal conductivity values between 0.035 and 0.040 W/m·K, they significantly reduce HVAC operating costs. Third, their fibrous structure effectively absorbs sound waves, making them ideal for noisy manufacturing environments. The perpendicular fiber arrangement in our panels increases compressive strength while maintaining their lightweight characteristics.

Technical Specifications and Available Configurations

Superior Performance Characteristics

Components that can perform well under pressure are necessary for your building projects. In operating conditions ranging from -40°C to +80°C, our panels offer thermal insulation. The mineral wool core maintains structural integrity and stops fire from spreading between building compartments at temperatures above 1000°C.

The installation speed is almost 250% faster than with traditional brick walls. The tongue-and-groove interlocking mechanism ensures weather-tight installation without the need for specialized tools. Each panel weighs just 10–24 kg/m², depending on the thickness of the core, which reduces the quantity of structural steel required and the foundation load requirements.

Waterproofing and moisture resistance are built into sealed metal facings. Unlike organic insulating materials, rock wool maintains its thermal efficacy even in the presence of moisture. The sound absorption coefficient (NRC) in industrial settings is between 0.75 and 0.85, making interior spaces comfortable.

Application Scenarios and Industry Solutions

Manufacturing facilities benefit from the acoustic dampening properties when housing heavy machinery. The non-combustible nature makes these panels mandatory for chemical processing plants and warehouses storing flammable materials. Cold storage operators appreciate the superior R-values that maintain consistent interior temperatures with minimal energy input.

Commercial construction projects choose our Rock Wool Sandwich Panels for partition walls requiring fire compartmentation. Cleanroom environments utilize the smooth metal surfaces that prevent particle accumulation. Agricultural buildings gain affordable climate control for livestock and crop storage applications.

Installation Advantages and Long-Term Durability

The lightweight panel design helps your building schedule. In contrast to 50–80 square meters for concrete block walls, a typical workforce installs 200–300 square meters every day. Project handover is accelerated since the pre-finished surfaces do not require painting or plastering.

The mineral core's chemical inertness guaranties that it will not corrode structural elements or metal fasteners. Even in coastal areas, electrochemical reactions are prevented by the pH-neutral composition. With little maintenance needed, a service life of more than 30 years is anticipated.

Flexible joint designs allow panels to accommodate thermal expansion. By preventing thermal bridging at connecting points, the multi-layer construction preserves the integrity of the envelope. By directly fastening panels to structural frameworks, you can retrofit existing buildings.

Quality Assurance and Manufacturing Excellence

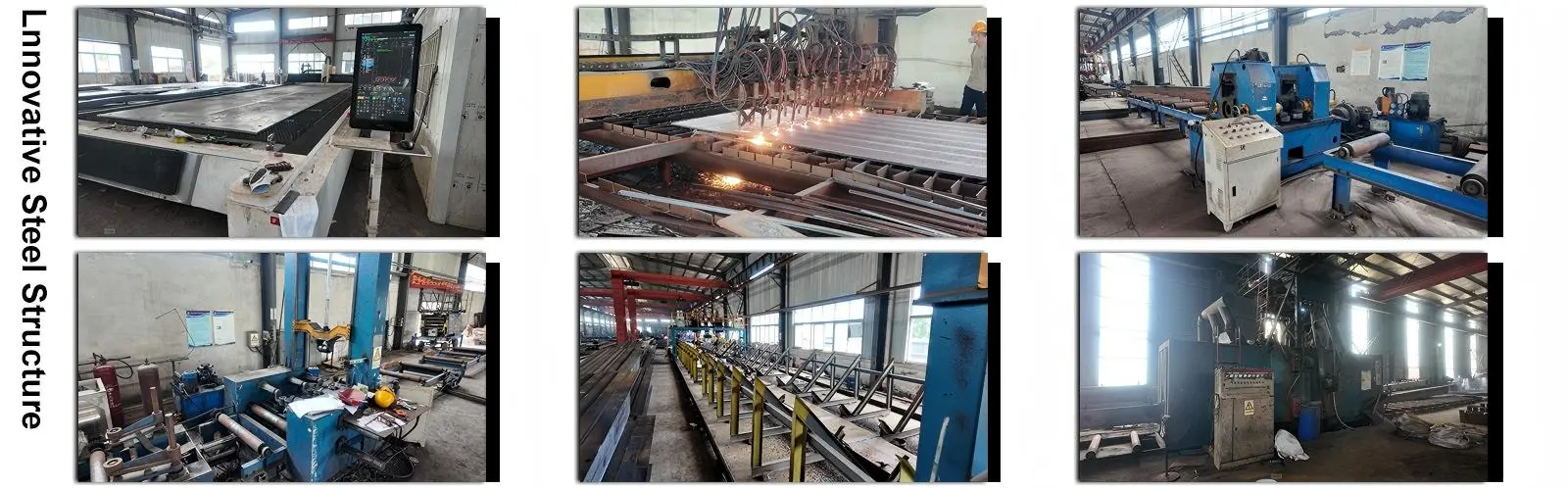

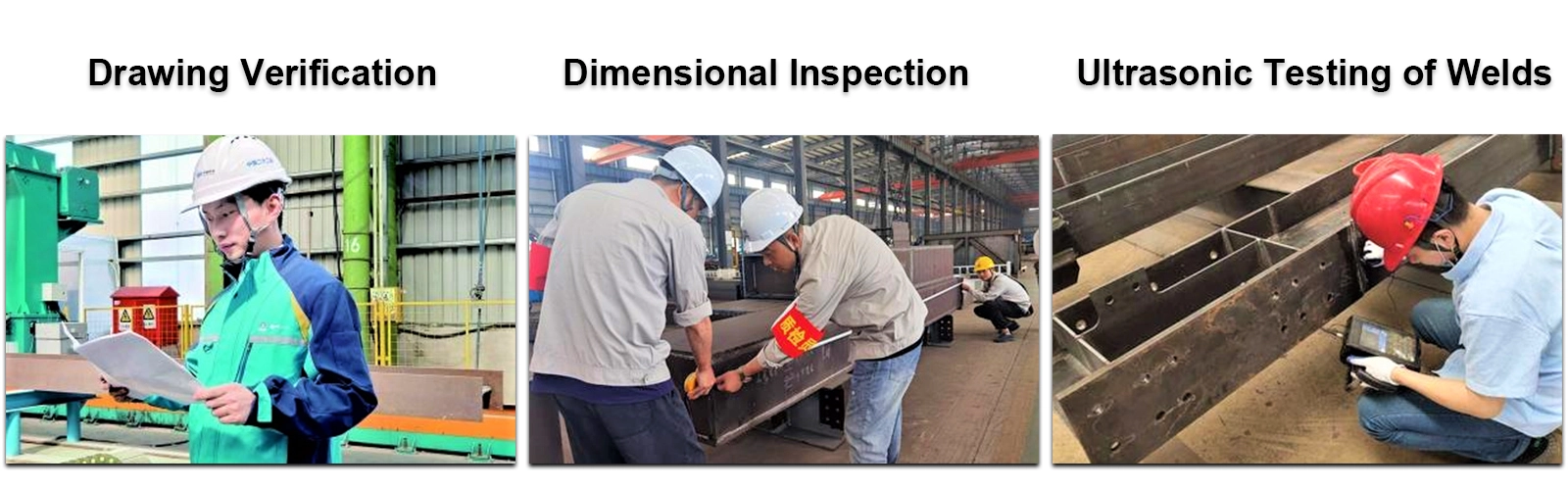

Our sophisticated steel structure processing production line uses cutting-edge machinery from around the world to guaranty constant panel quality. Every manufacturing batch is subjected to dimensional accuracy inspections, bond strength testing, and density verification. For large-scale projects, the 50,000-ton yearly production capacity ensures a steady supply.

From early design to installation supervision, skilled technical teams offer tailored project solutions. To optimize panel parameters for your particular application requirements, we perform acoustic simulations and thermal modeling. Every order is accompanied by comprehensive engineering drawings, which make contractor coordination easier.

FAQ

Q: In terms of fire safety, how do Panels stack up against polyurethane core substitutes?

A: While PU foam usually receives a B2 or B1 rating, mineral wool receives a Grade A1 non-combustible certification. Rock wool is essential for high-risk industrial facilities and buildings that need rigorous fire compartmentation because it preserves structural integrity above 1000°C without emitting poisonous gasses.

Q: Can heavy equipment or wall-mounted fixtures be supported by these panels?

A: Distributed loads up to 150 kg/m² are handled by standard panels. Steel reinforcement channels are embedded during production for concentrated loads such as conveyor systems or HVAC units. Our engineering staff will create suitable attachment options if you specify load requirements during the ordering process.

Q: What upkeep is necessary for panels in corrosive coastal environments?

A: The pre-painted steel facings' zinc and organic coatings provide 15–20 years of corrosion protection. Rinsing with fresh water once a year removes salt accumulation. If you are exposed to harsh marine conditions, choose stainless steel facings that require virtually no upkeep for over 30 years.

Q: How much does installation cost in comparison to more conventional building techniques?

A: Total installed costs are usually 10–20% cheaper than those of concrete blocks, while material costs are 15–25% higher. Reduced work hours, the elimination of finishing trades, fewer structural requirements, and quicker project completion all result in lower finance costs.

Q: Is it possible to customize surface treatments and colors?

A: Yes. We can meet some corporate branding needs and provide typical RAL color options. Surface choices include textured, embossed, or smooth finishes. Requests for non-standard colors are subject to minimum order quantities.

Partner With Experienced Building Material Specialists

Luoyang Innovation Building Material Co., LTD brings comprehensive project support from concept through completion. Contact our technical team at eric@cxsteelstructure.com to discuss your specific requirements and receive Rock Wool Sandwich Panels detailed specifications tailored to your construction needs.
