Glassy Magnesium Purification Board
Color: Customer's Require
Metal Material:Color Steel Sheet
Core Material:Silicon Rock
Steel Thickness:0.17-0.6mm
Core Thickness: 50mm 75mm 100mm
Length:Customized
Effective Width: 950mm 970mm
Advantage:Fireproof Grade A
Function:Sound-absorbing Decoration Wall
Certificate:ISO-9001
Product Description
Glassy Magnesium Purification Board for Advanced Cleanroom Construction – High-Strength Fire-Resistant Panel Solution
Luoyang Innovation Building Material Co., LTD specializes in manufacturing premium Glassy Magnesium Purification Board through our 50,000-square-meter production facility with an annual capacity exceeding 2 million square meters. Our panels feature Grade A fireproof performance, 0.17-0.6mm steel thickness options, and customizable core thicknesses of 50mm, 75mm, or 100mm. With an effective width of 950mm-970mm and ISO-9001 certification, our boards combine silicon rock core material with color steel sheet facing to deliver exceptional temperature insulation, waterproofing, and sound absorption for demanding industrial applications.
Understanding This Advanced Composite Material
This engineered panel consists of a magnesium oxide and magnesium chloride ternary system core, reinforced with glass fiber mesh and faced with color-coated steel or stainless steel. Unlike traditional rockwool or EPS panels, it addresses moisture-induced deformation and structural fragility issues.
The material achieves zero-dust emission standards. It meets GMP and ISO compliance requirements for controlled environments. Your facility gains long-term structural integrity without compromising safety standards.
Technical Specifications Overview Of Glassy Magnesium Purification Board
| Parameter | Specification |
|---|---|
| Metal Material | Color Steel Sheet |
| Steel Thickness | 0.17-0.6mm |
| Core Material | Silicon Rock |
| Core Thickness | 50mm / 75mm / 100mm |
| Effective Width | 950mm / 970mm |
| Length | Customized |
| Fire Rating | Grade A Non-combustible |
| Color Options | Customer's Requirements |
| Certification | ISO-9001 |
| Flexural Strength | 15-20 MPa |
| Core Density | 1.0-1.2g/cm³ |
| Water-Softening Coefficient | ≥0.8 |
Superior Performance Characteristics
Your construction project benefits from multiple integrated advantages. The panels provide excellent temperature insulation while maintaining optional fire ratings suitable for various applications.
Installation simplicity reduces labor costs and project timelines. The lightweight design decreases structural load requirements. Energy-saving properties lower operational expenses over the building's lifecycle.
Waterproof and moisture-proof capabilities prevent common deterioration issues. Sound insulation features create comfortable working environments. The material withstands high-humidity conditions without swelling or warping, solving the halogenation problem affecting lower-grade alternatives.
The vitrified core delivers superior surface flatness with tolerance under 0.5mm. This ensures seamless tongue-and-groove joints during installation. Your facility maintains airtight seals essential for contamination control.

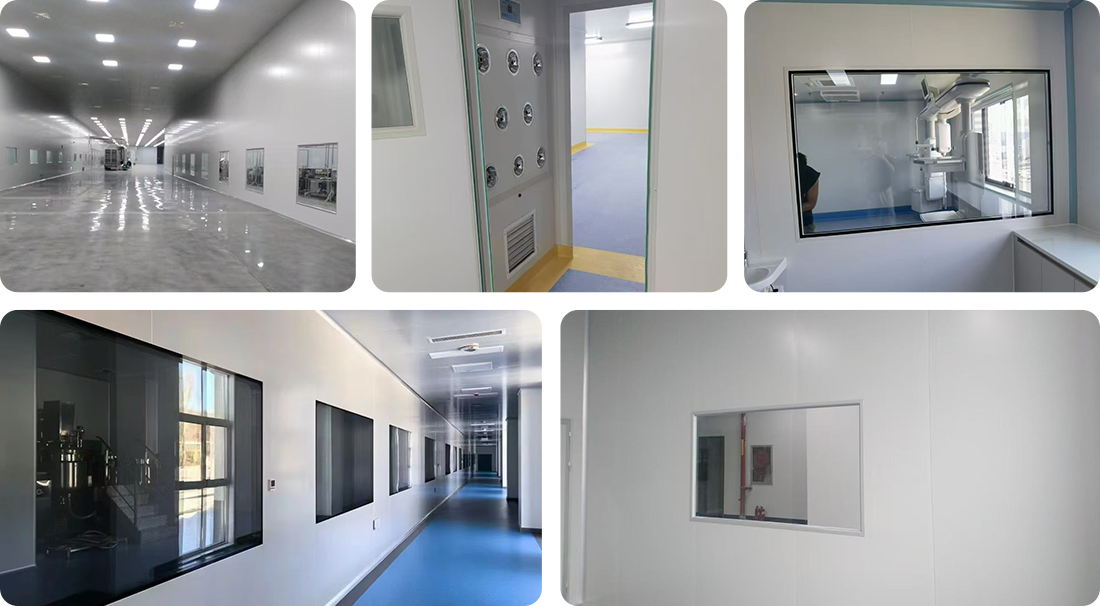

Industry-Specific Applications
Pharmaceutical and bio-tech cleanrooms require resistance to chemical corrosion during hydrogen peroxide decontamination cycles. The Glassy Magnesium Purification Board maintains structural integrity under these demanding conditions.
Semiconductor and electronics manufacturing facilities benefit from high-density construction that minimizes vibrations. The rigid structure supports strict anti-static surface requirements for microchip assembly operations.
High-standard medical operating rooms demand impact resistance and antimicrobial surface compatibility. These panels create seamless, sterile wall systems. They withstand constant movement of heavy medical equipment and rigorous disinfection protocols without compromising performance.

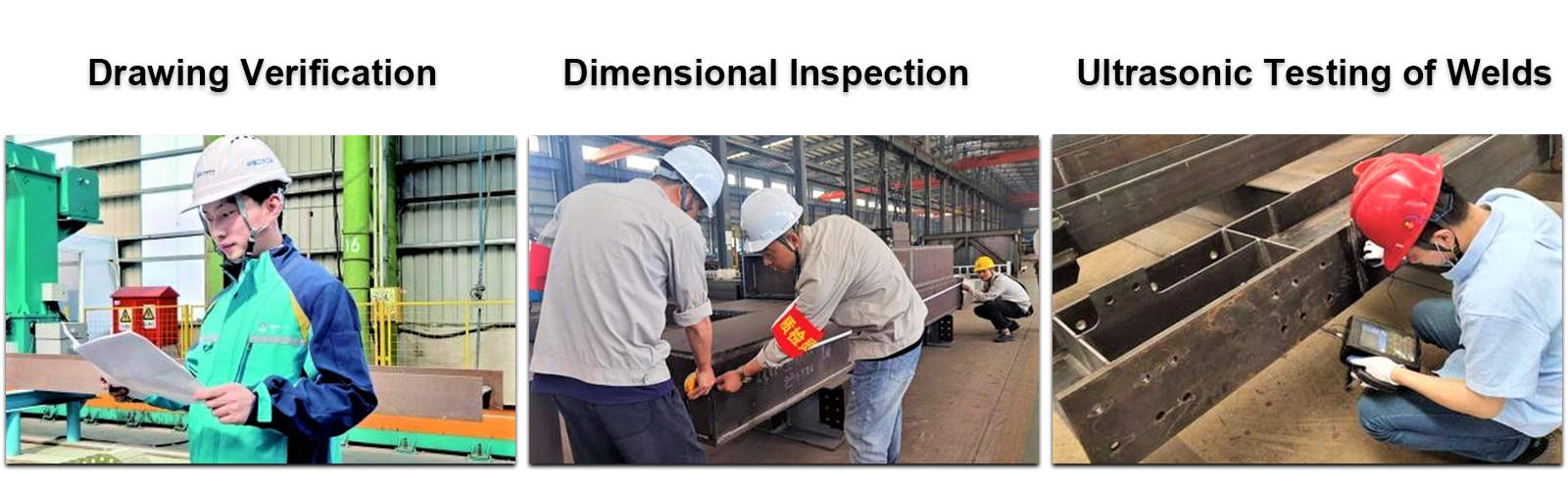

Quality Assurance Standards
Our manufacturing process implements rigorous inspection protocols at every stage. Halogenation resistance testing places samples in controlled environments at 40°C and 90% relative humidity for 72 hours. This verifies zero surface sweating or chloride ion migration.
Bonding strength tests ensure adhesive layers between core and steel plate exceed 0.1MPa peel strength. This prevents delamination during service life.
Ultrasonic testing verifies consistent core density throughout each panel. This consistency determines fire resistance duration and overall structural performance.
Digital calibration equipment checks dimensional accuracy. Diagonal differences remain within ±2mm tolerance. This precision guarantees proper fit during installation and maintains cleanroom integrity.
Installation and Maintenance Advantages
The tongue-and-groove joint system facilitates rapid assembly. Your construction team completes installations faster compared to alternative systems. This reduces project duration and associated costs.
The material requires minimal ongoing maintenance. The inorganic vitrified magnesium core provides no nutrients for mold growth. This characteristic passes ASTM G21 testing standards.
On-site cutting remains possible using diamond-tipped circular saws. The high-density composition and glass fiber reinforcement require proper tools for clean edges. Your installation team should plan accordingly for field modifications.
Environmental and Safety Compliance
The composition contains zero asbestos and formaldehyde. This ensures no volatile organic compound off-gassing in sensitive semiconductor or pharmaceutical laboratories.
Class A1 non-combustible rating means the material withstands high temperatures without releasing toxic fumes. Depending on core thickness selection, fire endurance ratings range from 1 to 4 hours.
The modified formula incorporates phosphoric acid or specialized coatings. These additions neutralize chloride ions and pass salt spray corrosion tests. Your metal components maintain long-term integrity without degradation.
Frequently Asked Questions
Q: How does this material compare to rockwool for cleanroom construction?
A: While rockwool provides better thermal insulation, this product offers significantly higher structural strength and superior moisture resistance. It performs better for walk-on ceiling applications where load-bearing capacity matters.
Q: Does chloride content cause corrosion to steel facing?
A: Our modified formula with added phosphoric acid neutralizes chloride ions. The panels pass salt spray tests, ensuring long-term metal skin integrity without corrosion issues.
Q: What cutting tools work for on-site modifications?
A: The high-density composition requires diamond-tipped circular saws. Standard cutting tools won't produce clean edges due to glass fiber reinforcement within the core structure.
Q: What fire resistance duration can we expect?
A: Core thickness determines fire endurance ratings. The 50mm option provides 1-hour resistance, while 100mm cores deliver up to 4-hour protection based on testing standards.
Q: Is the material resistant to biological growth?
A: Yes, the inorganic vitrified magnesium core provides zero nutrients for mold or bacteria. This property has been verified through ASTM G21 standardized testing protocols.
Contact Us for Project Solutions
Our technical team provides customized specifications for your specific Glassy Magnesium Purification Board application requirements. Reach out to eric@cxsteelstructure.com for detailed quotations, technical documentation, and project consultation services.
