Sulfur Oxygen Magnesium Purification Board for Industrial Cleanroom Solutions with Fireproof Grade A1

Luoyang Innovation Building Material Co., LTD manufactures Sulfur Oxygen Magnesium Purification Board as a premium composite solution for controlled environments. With its twin metal facings and magnesium oxysulfate core, our product offers exceptional moisture resistance and Grade A1 fireproof performance. This panel satisfies strict requirements with steel thickness options of 0.17mm to 0.6mm and core thicknesses of 50mm, 75mm, and 100mm. Our 50,000-square-meter production facility produces more than 2 million square meters a year, guaranteeing a consistent supply for major projects. With adjustable lengths and an ISO-9001 certification, the effective width ranges from 950 to 970 mm.

certificate

Understanding Sulfur Oxygen Magnesium Core Technology

This advanced panel utilizes magnesium sulfate instead of traditional magnesium chloride. The sulfur-based formulation completely eliminates the sweating phenomenon that plagues conventional boards.

You won't experience moisture beads forming on panel surfaces. The chemical stability prevents steel plate corrosion even in humid conditions.

The inorganic core material combines fiber reinforcement with specialized fillers. This composition creates exceptional structural integrity while maintaining lightweight properties. You benefit from reduced building loads without compromising strength.

Technical Specifications and Performance Parameters Of Sulfur Oxygen Magnesium Purification Board

Parameter	Specification
Metal Material	Color Steel Sheet
Steel Thickness	0.17-0.6mm
Core Material	Sulfur Oxygen Magnesium
Core Thickness	50mm / 75mm / 100mm
Effective Width	950mm / 970mm
Length	Customized
Core Density	250-400kg/m³
Thermal Conductivity	0.05-0.07 W/(m·k)
Fire Rating	Grade A1 Non-combustible
Moisture Absorption	<10%
Color Options	Customizable

The neutral pH composition protects both galvanized and stainless steel skins. You achieve extended service life in challenging industrial environments.Superior Advantages for Demanding Applications

Fire Resistance Beyond Standards

Your facility receives Grade A1 non-combustible protection with fire endurance exceeding 1-2 hours. The panel maintains structural stability under extreme heat without sagging.

Moisture and Chemical Resistance

The low moisture absorption rate ensures dimensional stability. You can use these panels in areas with frequent chemical sterilization and high humidity levels.

Exceptional Mechanical Strength

Flexural and compressive strength reaches 2-3 times higher than traditional rock wool boards. This enables walk-on ceiling installations for maintenance accessibility.

Temperature Insulation and Energy Efficiency

The thermal conductivity coefficient minimizes heat transfer. You reduce operational costs through superior energy conservation performance.

Sound Insulation Properties

The dense core structure provides excellent acoustic dampening. You create quieter work environments in noisy industrial settings.

Lightweight Installation

Despite high density, the panel remains easy to handle. You achieve faster installation times with standard tongue-and-groove or aluminum profile systems.

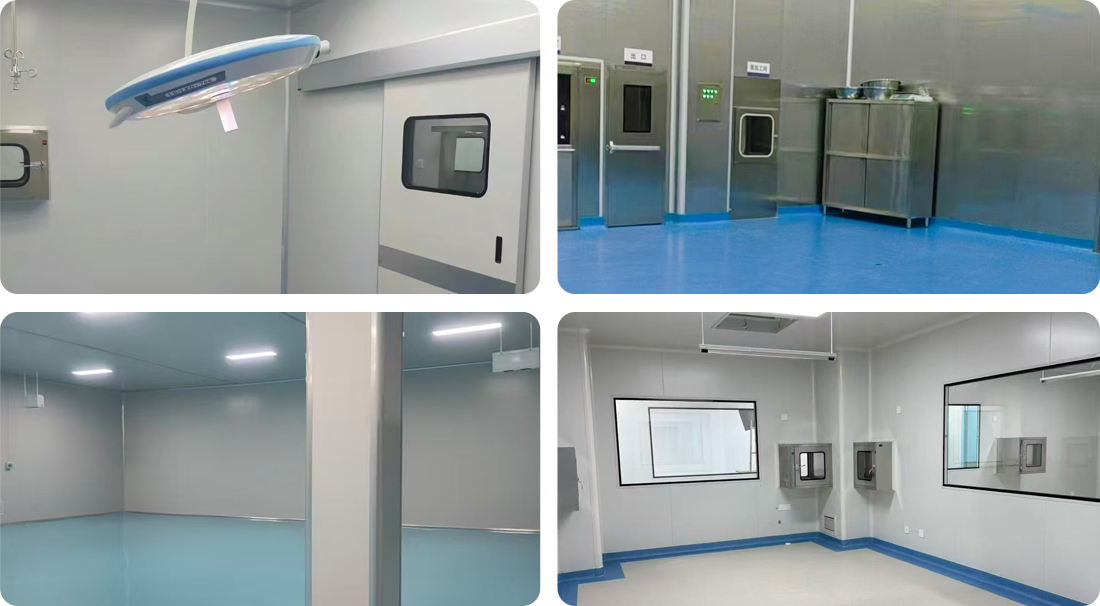

application

Industrial Applications Across Critical Sectors

Pharmaceutical and Biotech Cleanrooms

Your GMP-compliant facilities benefit from zero microbial growth potential. The inorganic nature provides no nutrients for bacteria or mold.

Microelectronics and Semiconductor Fabrication

Dust-free workshops require low outgassing properties. You protect sensitive silicon wafers with this contamination-free solution.

Food Processing and Cold Chain Facilities

Temperature differentials create condensation challenges. This Sulfur Oxygen Magnesium Purification Board moisture-proof characteristics prevent rot and rust in demanding conditions.

Hospital Operating Rooms and Laboratories

Sterile environments demand reliable performance. You maintain strict hygiene standards with surfaces that resist biological contamination.

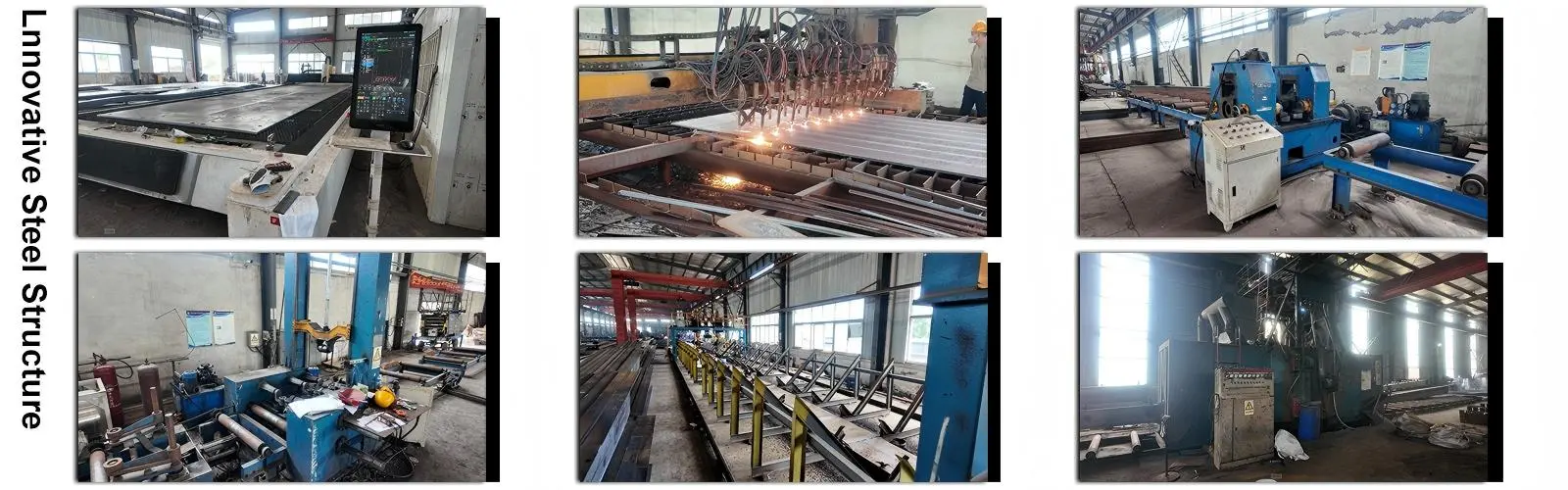

factory

Quality Control and Manufacturing Excellence

Our intelligent production line ensures consistent quality. Each panel undergoes rigorous inspection protocols:

Peeling Strength Testing verifies bonds exceed 0.1MPa to prevent delamination. Chloride Ion Analysis confirms levels below 0.1% for corrosion prevention.

Flatness Measurements using laser leveling maintain surface deviation under 1mm per meter. This precision enables seamless cleanroom installations.

Combustion Performance Testing follows GB8624 international standards. Salt Spray Testing validates anti-corrosion performance in harsh environments.

Our 50,000-ton annual steel structure capacity supports integrated project delivery. You receive comprehensive solutions from design through construction.

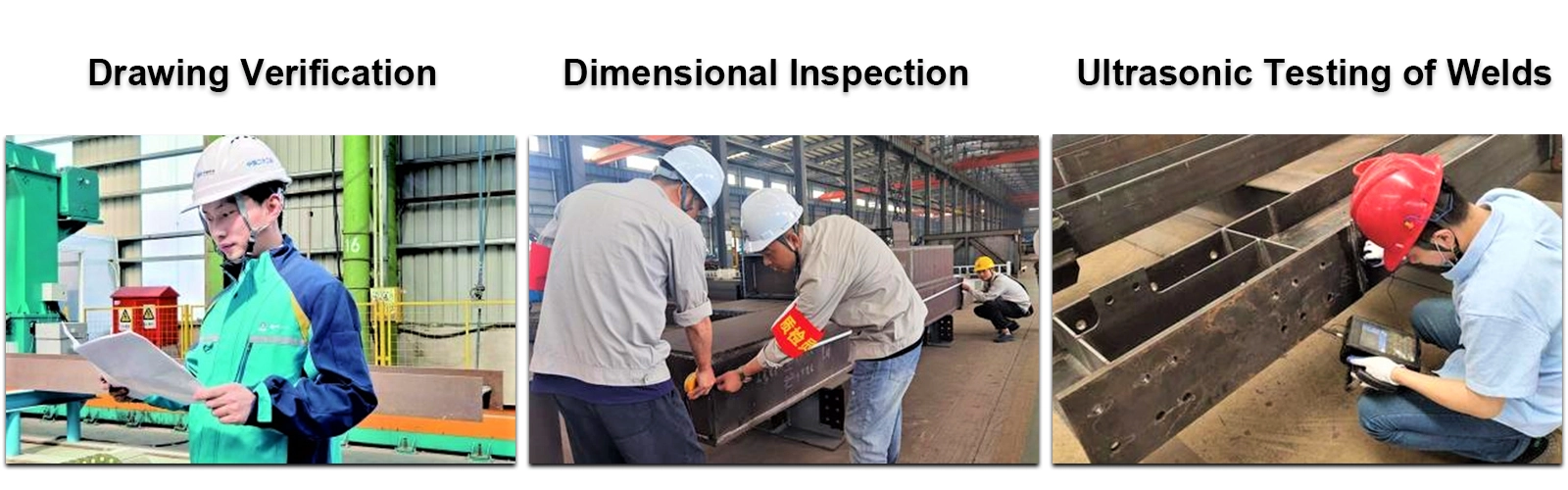

quality testing

Frequently Asked Questions

Q: How does this differ from magnesium oxychloride boards?

A: The sulfur-based formulation eliminates moisture absorption and steel corrosion issues. You avoid the sweating phenomenon entirely.

Q: Can it support walk-on ceiling loads?

A: Yes, the high structural density and flexural strength accommodate maintenance access. It significantly outperforms rock wool in load-bearing capacity.

Q: Is special installation equipment required?

A: Standard systems work well, though professional cutting equipment helps with precise onsite adjustments due to higher density.

Q: Does it meet pharmaceutical industry standards?

A: Absolutely. Zero formaldehyde and zero asbestos content satisfy stringent VOC emission requirements for pharmaceutical applications.

Q: What advantage does it offer over rock wool panels?

A: While both achieve Grade A fire rating, this panel provides better structural stability under heat and eliminates the sagging effect common with rock wool.

Partner with Innovation Building Material Experts

Transform your next cleanroom project with proven Sulfur Oxygen Magnesium Purification Board. Our experienced engineering team provides customized specifications tailored to your requirements.
