Their steel structures are exceptionally strong and precisely manufactured. The entire production process was highly professional.
Steel Structure Grandstand
Exterior Style: Enclosed steel frame building
Manufacturing Country: China
Structural Composition: Light H-beams or square steel tubing with galvanized purlins
Available Support: Design, production, packing and installation drawings
Applications: Vehicle garages, machinery storage and maintenance workshops
Quality Certification: ISO9001, CE, COC, PVOC
Production Lead Time: Short
Product Description
Steel Structure Grandstand Systems for Sports Venues and Event Facilities: Advanced Engineering Solutions for Safe and Efficient Spectator Seating

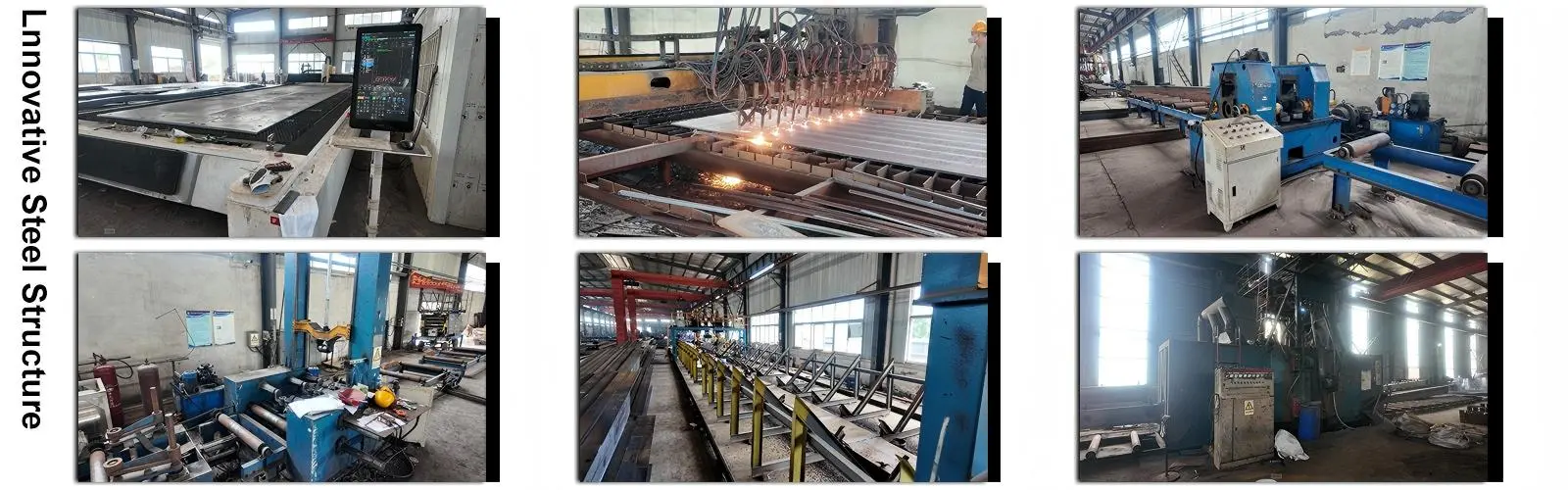

Luoyang Innovation Building Material Co., LTD is an expert in providing high-quality Steel Structure Grandstand. Grandstand solutions supported by a 50,000-square-meter production facility and a 50,000-ton yearly steel structural capability. Lightweight H-beams and square steel tubing with galvanized purlins are used in our enclosed steel frame grandstand systems, which provide excellent seating platforms for professional sports stadiums, transient event spaces, and educational establishments. With ISO9001, CE, COC, and PVOC certifications, each project benefits from our comprehensive design, production, and technical installation support capabilities. We provide dependable, high-performance structures that last for more than 50 years under strict quality control requirements, with production lead times much shorter than industry averages.
Engineering Design and Structural Composition
We use premium Q355B and Q235B carbon steel in our Grandstand. Lightweight H-beams or square tube steel frames, which offer remarkable load-bearing strength, make up the main framework.
The secondary system incorporates tie rods and galvanized C/Z-type purlins, guaranteeing structural stability in any weather. Every spectator has unhindered sightlines thanks to this arrangement, which permits column-free open areas with striking spans.
C4–C5 level corrosion resistance is achieved by hot-dip galvanization with a minimum coating thickness of 85μm. Durability in tropical, coastal, and high-humidity settings is ensured by this protective coating. When compared to conventional concrete options, your project will benefit from a weight reduction of 30–50%, which will greatly reduce the foundation requirements and soil bearing strain.
Technical Specifications and Performance Parameters Of Steel Structure Grandstand
| Parameter | Specification |
|---|---|
| Structural Type | Lightweight H-beam or square tube steel frame |
| Material Grade | Q355B / Q235B high-strength carbon steel |
| Secondary System | Galvanized C/Z-type purlins with tie rods |
| Load Capacity | Live loads exceeding 5.0kN/㎡ |
| Surface Treatment | Hot-dip galvanization (≥85μm thickness) |
| Corrosion Resistance | C4-C5 level protection |
| Fire Rating | 1-hour to 3-hour options with intumescent coatings |
| Design Life | 50+ years with standard maintenance |
| Weight Reduction | 30-50% lighter than concrete structures |
| Certifications | ISO9001, CE, COC, PVOC |
Core Performance Advantages You Can Rely On
Rapid Assembly and Project Efficiency
Prefabricated components manufactured in our intelligent production facility allow for on-site assembly in 30-50% less time than conventional concrete construction. You avoid seasonal delays and accelerate your venue's operational readiness.
Superior Seismic and Wind Resistance
Our grandstands can absorb and disperse energy during earthquakes or strong winds because to steel's natural elasticity. Because of this, the technology is perfect for high-seismic zones where stiff structures run the danger of failing catastrophically.
Adaptable Use of Space
Intermediate columns are not necessary with large-span capabilities. You obtain flexible, open areas ideal for VIP skyboxes, integrated roof canopies, or multipurpose event setups.
Ecologically conscious and sustainable
Steel produces very little trash during construction and is 100% recyclable. By lowering on-site dust, noise, and environmental disturbance, dry assembly techniques help your project comply with ESG and green building regulations.
Professional Application Scenarios
Stadiums for Professional Sports
For football fields, sports tracks, and multi-sport arenas, our Steel Structure Grandstand systems provide long-term seating options. Optimal viewing angles are guarantyd by engineered sightline calculations, and integrated lighting, sound systems, and weather protection canopies are supported by strong load-bearing capability.
Temporary and Moveable Event Locations
Olympic temporary structures, music events, and Formula 1 circuits all require quick deployment and deconstruction. You can move entire grandstand pieces without experiencing material fatigue or structural compromise because to our modular design.
Complexes for Community and Educational Sports
Accelerated construction schedules that reduce campus interruption are advantageous for schools and municipal facilities. The low-maintenance architecture maintains predictable and controllable long-term operating costs while withstanding intense daily use.

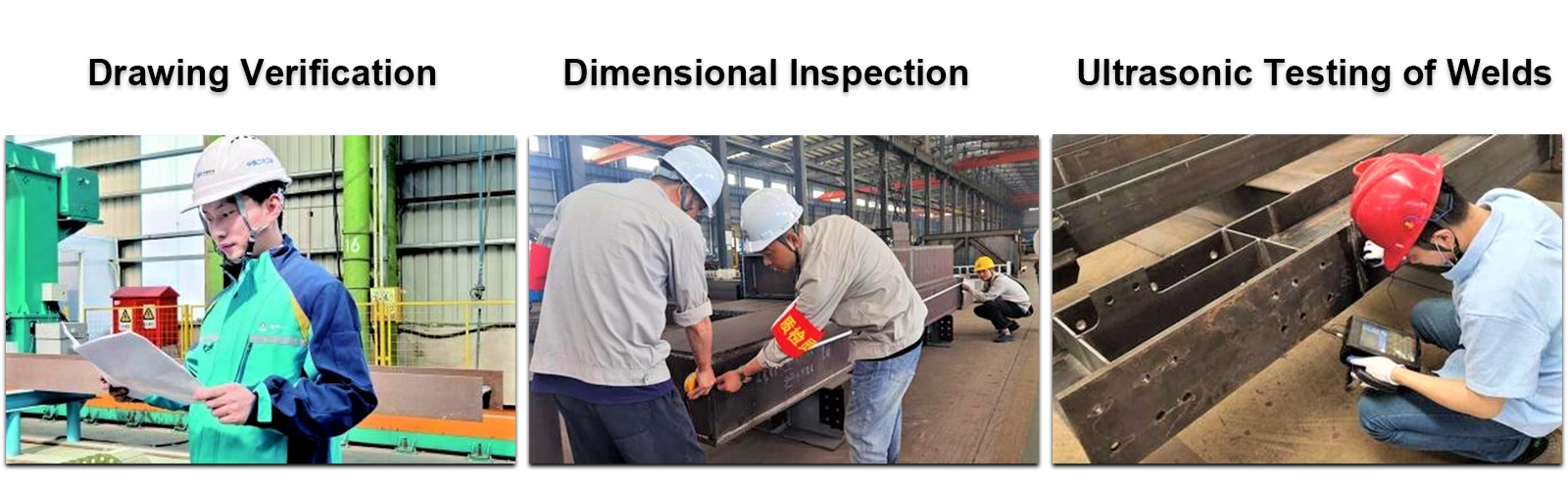

Quality Assurance and Inspection Protocols
Non-Destructive Testing (NDT)
Every critical weld joint undergoes Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI) to confirm zero internal defects. This ensures structural integrity under dynamic spectator loads.
Coating and Corrosion Protection Verification
Digital gauge instruments measure galvanizing thickness across all components. We guarantee anti-corrosion performance that meets international marine and industrial exposure standards.
Load Testing and Deflection Control
Static and dynamic load simulations verify deflection limits and natural frequency stability. Your grandstand remains stable even during rhythmic crowd movement or synchronized cheering.
Material Traceability and Compliance
Mill Test Reports (MTR) accompany every steel batch, documenting chemical composition and mechanical properties. Geometric tolerances stay within ±2mm to prevent secondary stress during assembly.
Frequently Asked Questions
Q: How long do you think your grandstand systems will last?
A: Our structures have a design life of more than 50 years with regular hot-dip galvanization and yearly inspections. Bolt torque verification, drainage system inspections, and coating integrity are the key goals of periodic maintenance.
Q: What is the performance of these constructions in seismically active areas?
A: Compared to stiff concrete, steel's ductility and our unique bracing systems absorb seismic energy significantly more efficiently. Because of this feature, our grandstands adhere to strict seismic requirements across the globe.
Q: Is it possible to modify designs to accommodate difficult soil conditions?
A: Yes. The foundation requirements are significantly reduced by the 30–50% weight decrease when compared to concrete. This adaptability is ideal for locations with difficult ground conditions or poor soil carrying capacity.
Q: Are your grandstands compliant with fire safety regulations?
A: Definitely. As mandated by regional building codes and global safety standards, we use intumescent fire-retardant coatings to get fire ratings of one to three hours.
Q: What ongoing maintenance is necessary?
A: Annual visual inspections cover bolt connections, drainage functionality, and surface coating condition. This proactive approach ensures long-term safety and preserves your investment value.
Start Your Grandstand Project Today
Ready to discuss your Steel Structure Grandstand requirements? Our technical team provides customized design solutions, detailed engineering drawings, and comprehensive project support from initial concept through final installation.
contact us at eric@cxsteelstructure.com to receive professional consultation and technical specifications tailored to your venue's unique needs.
