Steel Structure Beam

Premium Steel Structure Beam Solutions for Modern Construction Projects

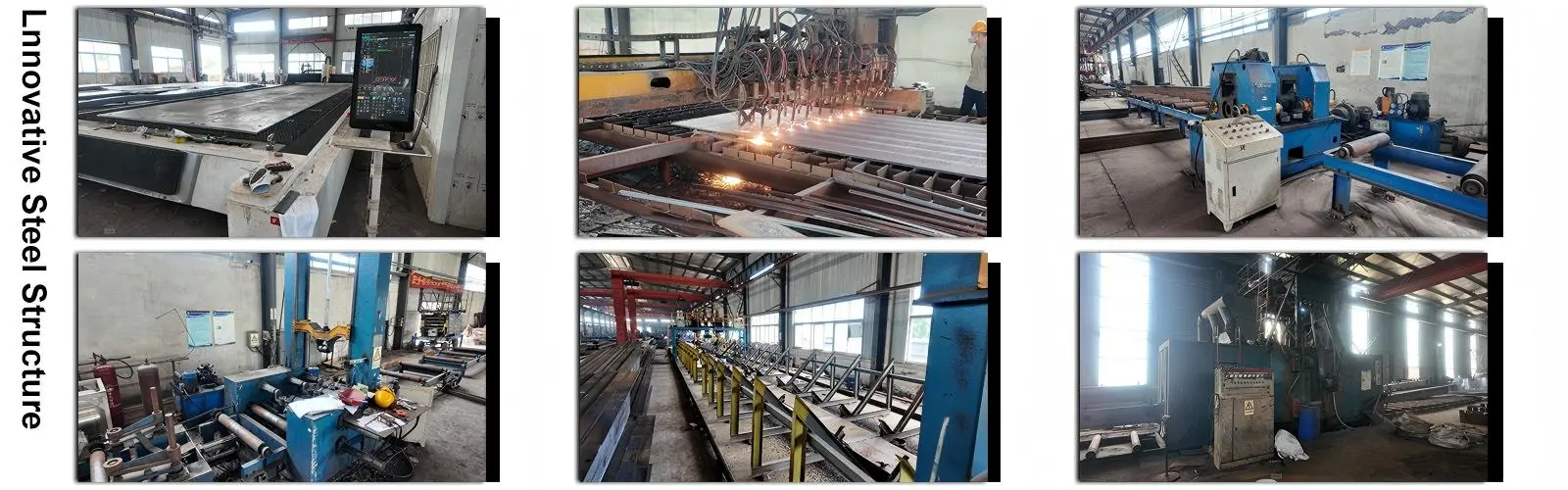

With an annual production capacity of 50,000 tons, Luoyang Innovation Building Material Co., LTD specializes in designing high-performance steel structure beam systems. Precision-made H-beams and square tube frames with proven yield strengths ranging from 235MPa to 460MPa are produced by our intelligent steel structure processing line. We ensure quick turnaround times while upholding ISO9001-certified quality standards from a 50,000-square-meter production facility. To guaranty adherence to ASTM A6/A6M and EN 10025 requirements, every Beam is put thru stringent non-destructive testing and dimensional verification. Compared to traditional concrete frameworks, our integrated design-to-installation service model shortens project lead times by 30% to 50%.

Engineering Excellence in Load-Bearing Steel Frameworks

Structural elements used in modern building must combine remarkable strength with economical material use. Our lightweight steel H-beams' accurately calculated cross-sectional design allows for the best possible load distribution. Consistent flange-to-web connections that satisfy seismic code criteria for high-risk zones are guarantyd by factory-controlled welding procedures.

The basic frame components are easily integrated with the galvanized C/Z-type purlin systems. The loads from the roof and wall cladding are evenly distributed among the main beams by this supplementary structural network. Prefabricated bolt-hole precision within ±2mm tolerances save labor on-site for your project.

In industrial settings, anti-corrosion treatments increase service life beyond 50 years. Multi-layer epoxy coatings or hot-dip galvanization offer protection from chemical fumes and exposure to saltwater. Every shipment comes with confirmed Mill Test Certificates and material traceability paperwork.

Technical Specifications and Performance Data Of Steel Structure Beam

Superior Structural Advantages for Your Projects

High Ratio of Strength to Weight

Steel Structure Beam save weight by 30% to 40% when compared to alternatives made of reinforced concrete. This results in less expensive foundations and less complicated ground treatment needs. Larger open spans are achieved in your project without the need for intermediate columns.

Quick Prefabricated Assembly

Factory-finished parts are delivered prepared for bolt-together assembly. When compared to cast-in-place concrete processes, construction schedules can be reduced by as much as 50%. All year long, weather-independent assembly keeps your project moving forward.

Wind and Seismic Resistance

Extreme wind loads and earthquake occurrences cause ductile steel to absorb energy. Catastrophic failure modes are avoided with controlled plastic deformation. Steel is the material of choice for high-risk areas due to its inherent safety factor.

Sustainable and Recyclable

Steel is 100% recyclable without losing its quality. Dry building techniques reduce construction waste and dust on the job site. Your project satisfies the requirements for green building certification and ESG reporting.

Diverse Application Scenarios

Facilities for Manufacturing and Industrial Storage

Interiors longer than 60 meters are column-free thanks to long-span beam arrangements. Flexible manufacturing line configurations and overhead cranes are supported by this open layout. Unobstructed floor space is advantageous for storage zones and maintenance bays.

High-rise and Commercial Structures

Slender H-beam profiles satisfy lateral load requirements while optimizing rentable floor area. Within zoning restrictions, a lower structural depth permits higher ceilings or more floors. When compared to concrete frames, your building obtains 3%–8% more usable area.

Particular Environments

Corrosion-resistant structural structures are required for chemical facilities and offshore platforms. When exposed to salt spray and acidic vapors, our improved coating packages retain their ability to support loads. When combined with intumescent coatings, parking structures offer enhanced fire protection.

Rigorous Quality Assurance Protocols

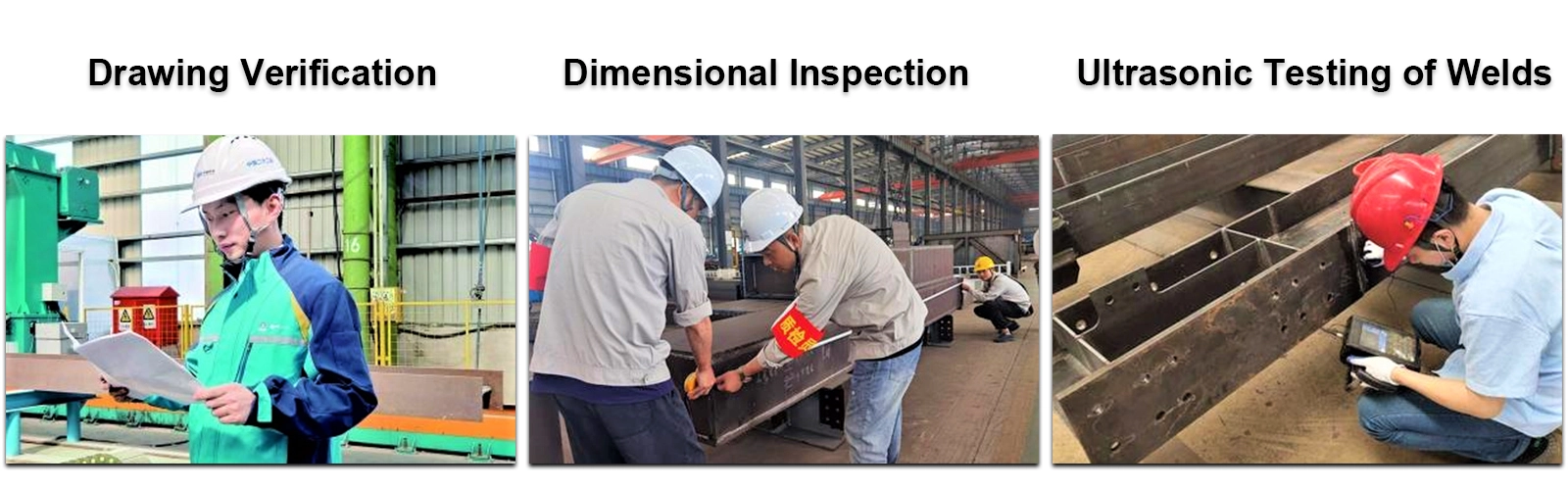

Prior to shipment, each structural component is subjected to a multi-stage inspection. Internal discontinuities in crucial weld zones are found using Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI). Dimensional verification verifies the tolerances for flange width, web thickness, and straightness.

Certified chemical analysis reports are the first step in material traceability at the steel plant. For every heat number, values for elongation, yield point, and tensile strength are recorded. Measurements of coating thickness confirm that Dry Film Thickness (DFT) complies with the requirements of your project.

Our facility welcomes third-party inspection services. Systems for real-time production monitoring keep tabs on quality checkpoints and fabrication progress. Material certificates, dimensions logs, and NDT results are all included in the extensive documentation packages you receive.

Comprehensive Engineering Support

From the first concept to the last installation, our technical team offers value-engineered solutions. Member sizing is optimized for your unique load combinations using structural analysis tools. We create comprehensive assembly drawings that include bolt schedules and connection information.

Field conditions can be accommodated by design changes without sacrificing structural integrity. Permit applications in certain jurisdictions are supported by engineer-stamped computations. Our familiarity with international construction codes guaranties adherence in a variety of markets.

Tools for cost estimation offer clear pricing for fabrication labor and material quantities. We work with your general contractor to arrange deliveries so that the site is ready. As-built documentation and inspection help are examples of post-installation support.

Frequently Asked Questions

Q: What differentiates H-beams from I-beams in structural applications?

A: H-beams feature wider flanges and thicker webs, making them ideal for heavy-load and long-span scenarios. I-beams suit lighter bending loads with more economical material usage. Your selection depends on span length and applied loads.

Q: How does fire affect steel beam performance?

A: While non-combustible, steel loses approximately 50% strength at 550°C. Intumescent paint or fire-rated cladding systems maintain structural integrity during fire events. We provide certified fire-resistance ratings upon request.

Q: Which steel grade works best in cold climates?

A: Grades with guaranteed Charpy V-notch impact toughness prevent brittle fracture below freezing. S355J2+N or equivalent specifications ensure ductility at sub-zero temperatures. Material selection aligns with your lowest anticipated service temperature.

Q: Can beams be modified after installation?

A: Steel allows reinforcement through welded plates or drilled bolt connections. All modifications require engineer approval to maintain structural safety factors. This flexibility exceeds concrete alteration capabilities.

Q: What determines beam service life?

A: Fatigue analysis and corrosion protection determine longevity. Properly galvanized or coated beams achieve 50+ year service lives in typical environments. Aggressive conditions may require enhanced coating systems for equivalent durability.

Contact Our Structural Steel Specialists

Ready to optimize your next building project with proven Steel Structure Beam solutions? Our engineering team provides customized quotations and technical support tailored to your specifications. Reach out today at eric@cxsteelstructure.com to discuss load requirements and delivery schedules.
